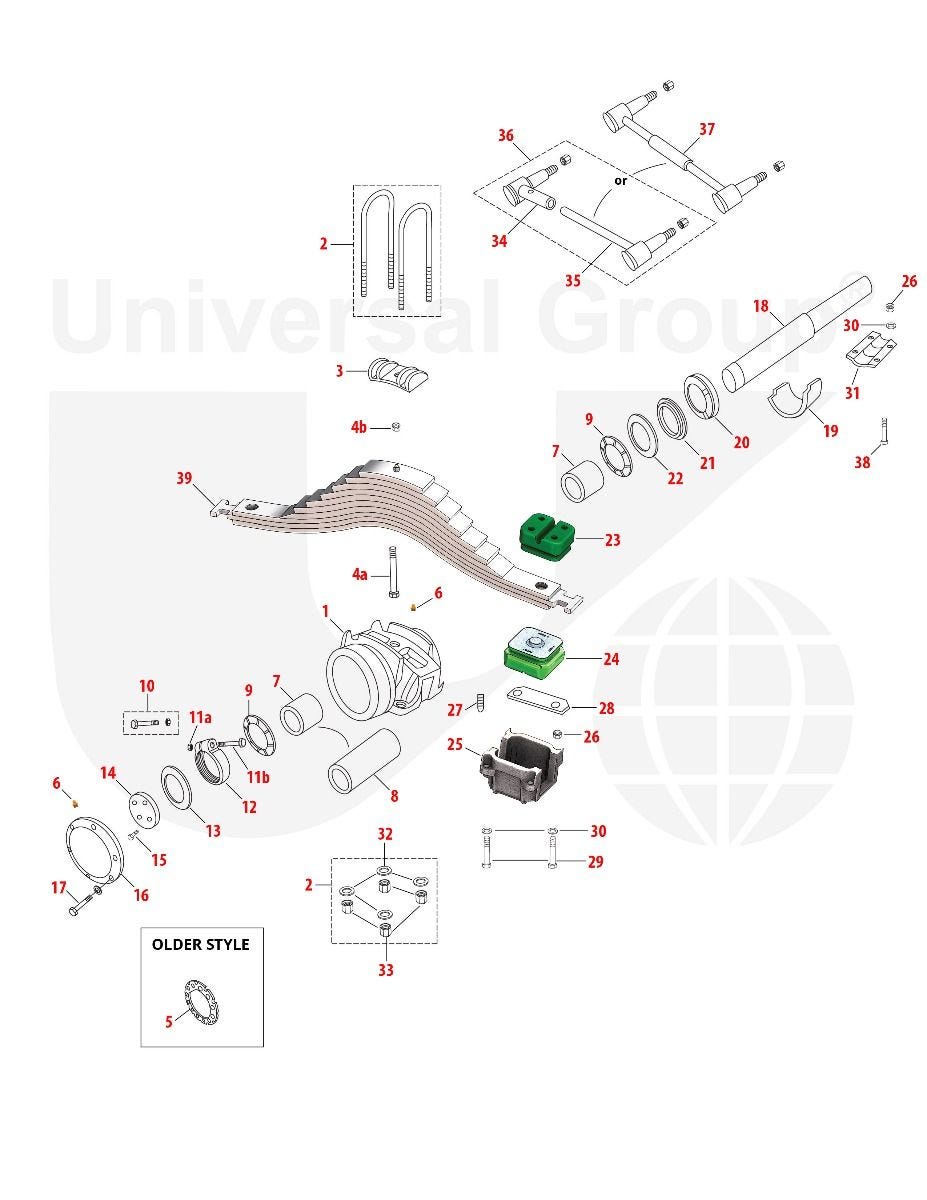

Mack : SS58 Camelback 4.0" Bar 5.0" Spring (55K)

For items with multiple options, see table below.

4b 7 7 9 9 12 20 21 22 23 24 32 33 39
Grouped product items
No. SKU Product Name Description Notes
4b DN-916 DN-916 DN-916 U-Bolt Deep Nut 9/16in-18 Grade 5 (qty: 24)

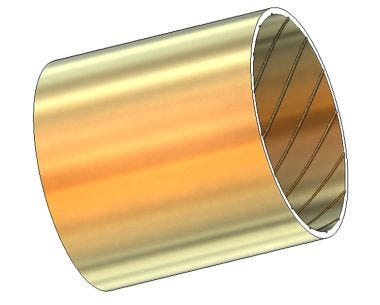

7 TBM-153 TBM-153 TBM-153 BRONZE TRUNNION BUSHING WITHOUT OIL HOLE 4.257in OD x 4.013in ID x 4.29in OAL
9 SM-018 SM-018 SM-018 BRONZE THRUST WASHER MACK 4in Bar 6-3/16in OD x 4in ID
12 SM-014 SM-014 SM-014 TRUNNION SHAFT NUT 6-1/8in OD x 3-7/8in-12 Thread

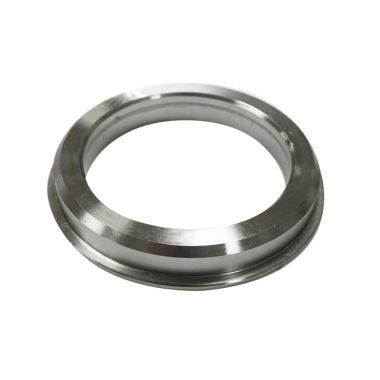

20 SM-019 SM-019 SM-019 Seal Collar - Mack 4.0in Trunnion

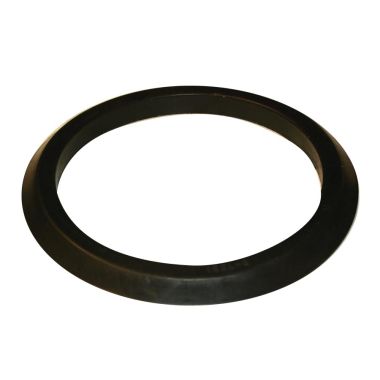

21 SM-012 SM-012 SM-012 Trunnion Seal 4.0in Mack - Rubber/Steel
22 SM-013 SM-013 SM-013 THRUST WASHER
23 PAD-32B-CH PAD-32B-CH PAD-32B-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER)
24 PAD-372-CH PAD-372-CH PAD-372-CH LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER)
24 PAD-372U-US PAD-372U-US PAD-372U-US LEAF SPRING INSULATOR PAD - LOWER MACK (POLYURETHANE PREMIUM)
32 UBW-114 UBW-114 UBW-114 U-Bolt Washer 1-1/4in (qty: 24)
33 DN-114 DN-114 DN-114 U-Bolt Reg. Deep Nut 1-1/4in-12 Grade 8 (qty: 24)
33 DN-114X DN-114X DN-114X U-Bolt Extra Deep Nut 1-1/4in-12 Grade 8 (qty: 8)
