| 1 |
RCM-001
|
RCM-001
|
TRUNNION 3-1/2in MACK |
|
| 2 |

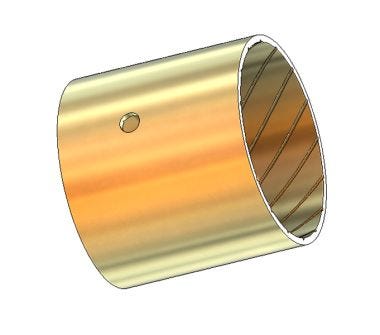

TBM-255
|
TBM-255
|
BRONZE TRUNNION BUSHING WITH 3/8in OIL HOLE 3.752in OD x 3.508in ID x 3.43in OAL |
|
| 3 |
SM-001
|
SM-001
|
BRONZE THRUST WASHER MACK 3-1/2 Bar 5.25in OD x 3.5in ID x 0.25in Thick |
|
| 4 |

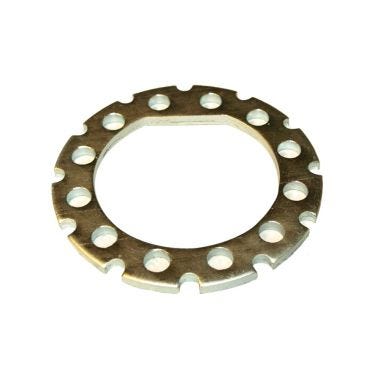

SM-004
|
SM-004
|
TRUNNION LOCK RING (D WASHER) |
|
| 5 |

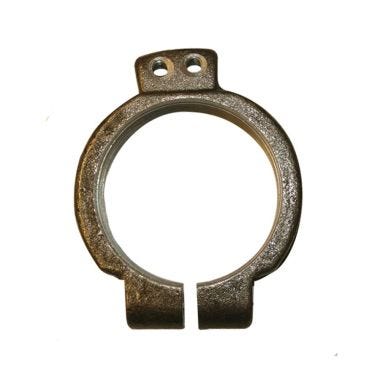

SM-011
|
SM-011
|
TRUNNION COLLAR NUT 3-5/16in-12 x (2) 3/8in-24 MACK |
|
| 10 |

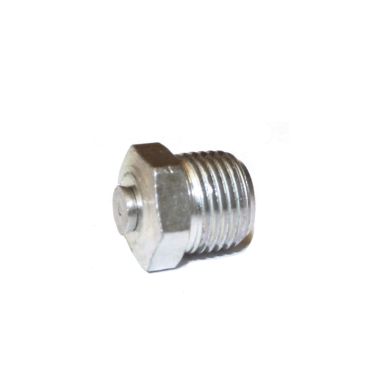

SGR-18-05
|
SGR-18-05
|
Grease Relief Fitting 1/8in-27 PTF 5psi |
|
| 12 |
SM-002
|
SM-002
|
STEEL THRUST WASHER MACK 3-1/2 Bar 5.375in OD x 3.5in ID x 0.312in Thick |
|
| 13 |
SM-006
|
SM-006
|
TRUNNION SEAL MACK 3-1/2 Bar |
|
| 15 |

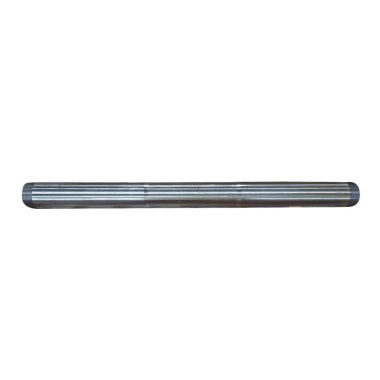

SMTB-3.5
|
SMTB-3.5
|
Trunnion Bar - Mack (3.5in OD x 48-3/4in L)(3-5/16in-12 ends) |
3-5/16in-12 Threaded Ends |
| 16 |

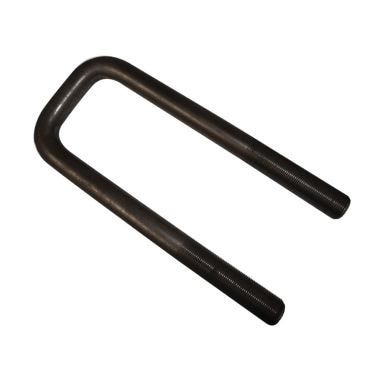

SMQ-NX4X15.5
|
SMQ-NX4X15.5
|
U-Bolt 1-1/4in-12D x 4-1/16in W x 15-1/4in L Square |
(1) U-Bolt. (2) Washers and (2) Nuts sold separately. |
| 16 |
SMQ-NX4X17.5
|
SMQ-NX4X17.5
|
U-Bolt 1-1/4in-12 D x 4-1/16in W x 17-1/4in L Square |
(1) U-Bolt. (2) Washers and (2) Nuts sold separately. |
| 16 |

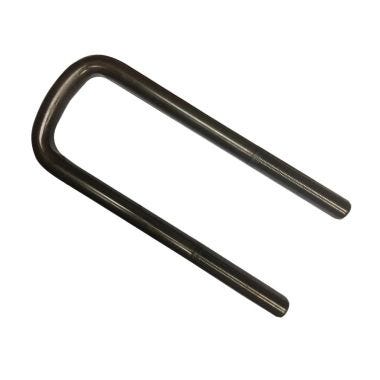

SMR-NX4X14.5
|
SMR-NX4X14.5
|
U-Bolt 1-1/4 D x 4-1/16 W x 14-1/2 L Semi-Round |
(1) U-Bolt. (2) Washers and (2) Nuts sold separately. |
| 16 |
SMR-NX4X15.5
|
SMR-NX4X15.5
|
U-Bolt 1-1/4 D x 4-1/16 W x 15-1/2 L Semi-Round |
(1) U-Bolt. (2) Washers and (2) Nuts sold separately. |
| 16 |
SMR-NX4X16.5
|
SMR-NX4X16.5
|
U-Bolt SINGLE 1-1/4in-12 D x 4-1/16in W x 16-1/2in L Semi-RND Mack [NEW: UBK-114-4-165MR] |
(1) U-Bolt only. Washers and Deep Nuts sold separately. |
| 16 |
SMR-NX4X17.5
|
SMR-NX4X17.5
|
U-Bolt SINGLE 1-1/4in-12 D x 4-1/16in W x 17-1/2in L Semi-RND Mack [NEW: UBK-114-4-175MR] |
(1) U-Bolt only. Washers and Deep Nuts sold separately. |
| 16 |
SMR-NX4X18.5
|
SMR-NX4X18.5
|
U-Bolt SINGLE 1-1/4in-12 D x 4-1/16in W x 18-1/2in L Semi-RND Mack [NEW: UBK-114-4-185MR] |
(1) U-Bolt only. Washers and Deep Nuts sold separately. |
| 16 |
SMR-NX4X19.5
|
SMR-NX4X19.5
|
U-Bolt SINGLE 1-1/4in-12 D x 4-1/16in W x 19-1/2in L Semi-RND Mack [NEW: UBK-114-4-195MR] |
(1) U-Bolt only. Washers and Deep Nuts sold separately. |
| 18 |

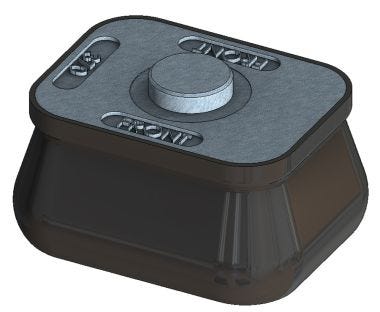

PAD-370-CH
|
PAD-370-CH
|
LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER) |
|
| 18 |

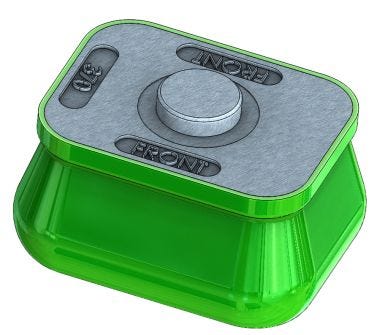

PAD-370U-US
|
PAD-370U-US
|
LEAF SPRING INSULATOR PAD - UPPER MACK (POLYURETHANE PREMIUM) |
|
| 19 |
SE-316
|
SE-316
|
SPACER BLOCK |
|
| 20 |

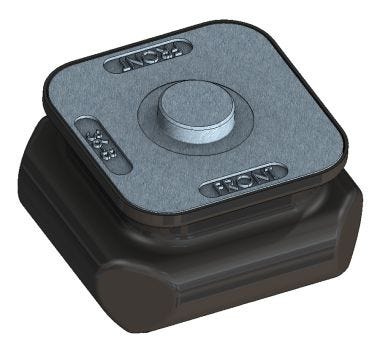

PAD-36B
|
PAD-36B
|
LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER) |
|
| 20 |
PAD-36BU-US
|
PAD-36BU-US
|
LEAF SPRING INSULATOR PAD - LOWER MACK (POLYURETHANE PREMIUM) |
|
| 20 |
PAD-36BP
|
PAD-36BP
|
LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER PREMIUM) |
|
| 21 |

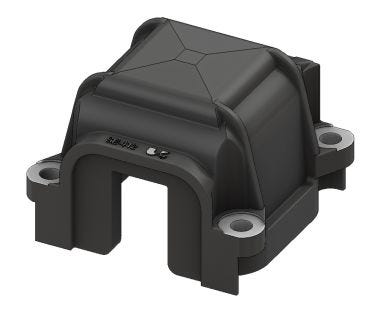

SE-412
|
SE-412
|
INSULATOR BOX |
|
| 21 |

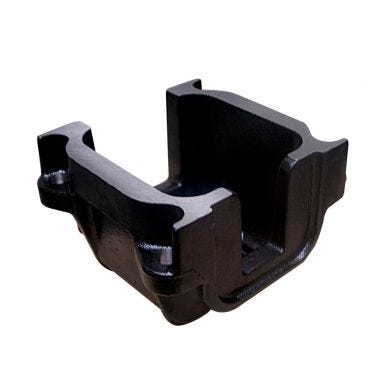

SE-411
|
SE-411
|
INSULATOR BOX |
|
| 24 |

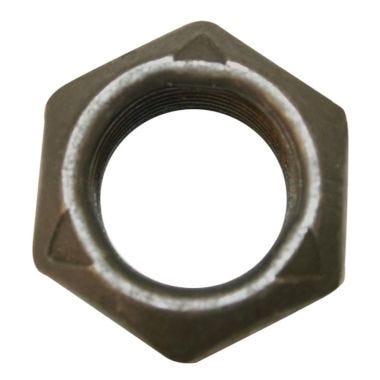

H-04842-000
|
H-04842-000
|
GENUINE HENDRICKSON LOCK NUT 7/8in-14 UNF |
|
| 25 |

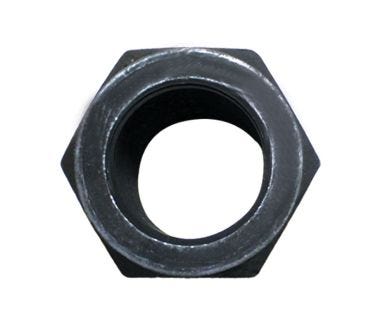

DN-114
|
DN-114
|
U-Bolt Reg. Deep Nut 1-1/4in-12 Grade 8 (qty: 24) |
|
| 25 |
DN-114X
|
DN-114X
|
U-Bolt Extra Deep Nut 1-1/4in-12 Grade 8 (qty: 8) |
|
| 26 |

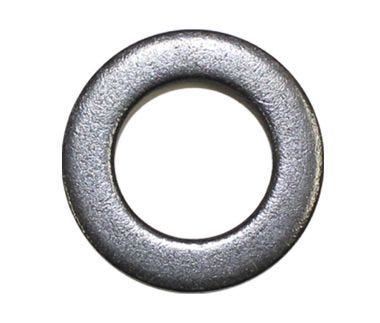

UBW-114
|
UBW-114
|
U-Bolt Washer 1-1/4in (qty: 24) |
|
| 29 |

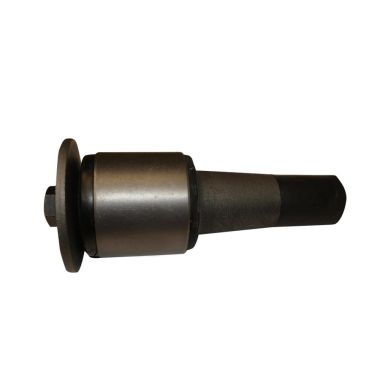

H-46735-000
|
H-46735-000
|
Genuine Hendrickson Torque Rod Taper Pin Bushing (short) |
|
| 31 |

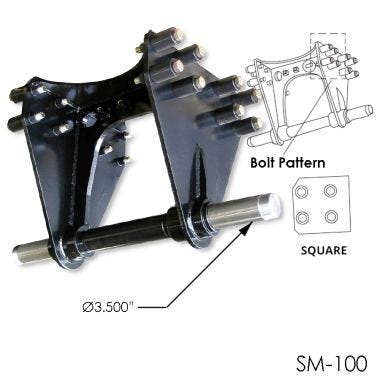

SM-100
|
SM-100
|
Mack Trunnion Stand Assembly, Square |
|
| 31 |
SM-101
|
SM-101
|
Mack Trunnion Stand Assembly, Trapezoid |
|
| 38 |

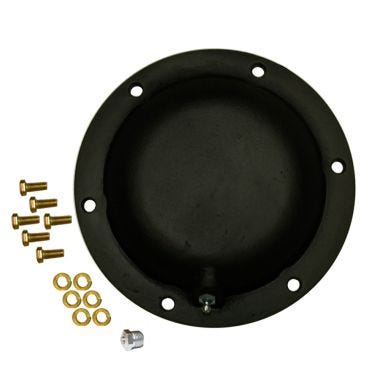

SE-456
|
SE-456
|
TRUNNION END GREASE CAP Mack 3.5in Bar 4in Spring |
Includes the proper Grease Relief Fitting, SGR-18-05, for the cap. |
| 40 |

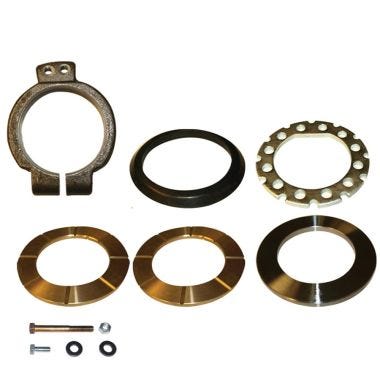

SM-3.5 KIT
|
SM-3.5 KIT
|
MACK TRUNNION 3.5 KIT (ONE SIDE) |
|
| 41 |

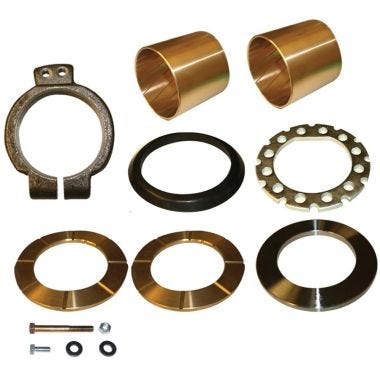

SM-3.5 KIT W/B
|
SM-3.5 KIT W/B
|
TRUNNION 3.5 INCH BUSHING KIT (ONE SIDE) MACK |
|
| 42 |

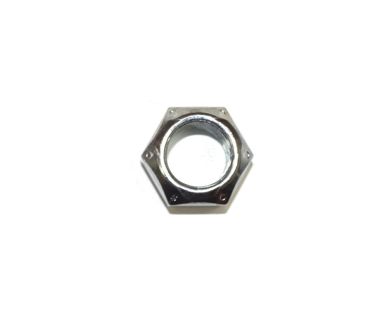

SLN-34
|
SLN-34
|
Steel Lock Nut 3/4in-16 UNF Grade C (qty: 10) |
|
| 44 |

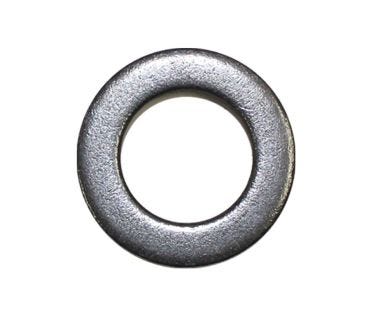

UBW-78
|
UBW-78
|
U-Bolt Washer 7/8in (qty: 24) |
|
| 45 |

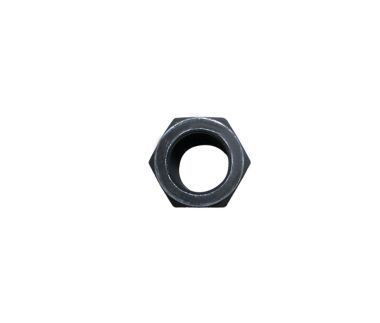

DN-12
|
DN-12
|
U-Bolt Deep Nut 1/2in-20 Grade 5 (qty: 24) |
|
| 46 |
SGZ-18-00
|
SGZ-18-00
|
Zerk Grease Fitting 1/8in-27 PTF Straight Standard 5/8in Length |
For longer lengths use SGZ-18-00L or longer H-30087-000 |
| 47 |

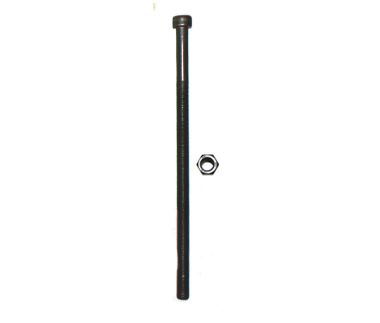

SCB-12100
|
SCB-12100
|
Center Bolt and Nut 1/2in-20 x 10in L (3/4in O.D. x 7/16in H Fillister Head) (qty: 10) |
|
| 48 |
62-143-US
|
62-143-US
|
Leaf Spring |
NEW STYLE, W/O U-BOLT PLATE (JP)). 3 MAIN LEAVES; END HOLES PL-1, PL-3 - 1 3/4 DIA. REPLACES 62-115. |
| 48 |

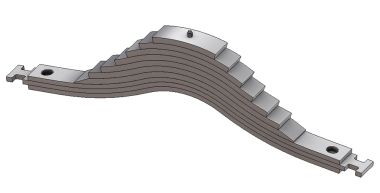

62-147-OE
|
62-147-OE
|
Genuine Hendrickson Leaf Spring (LONG revision) |
Long revision. Hole-to-Hole Length along spring plate #1: 52-5/8in. Replace in Pairs. |
| 48 |
62-155-US
|
62-155-US
|
LEAF SPRING |
NEW STYLE, W/O U-BOLT PLATE (JP)). 3 MAIN LEAVES; END HOLES PL-1, PL-3 - 1 3/4 DIA. REPLACES 62-113. |
| 48 |
62-147L-CA
|
62-147L-CA
|
Leaf Spring (LONG revision) |
Revised long version. Recommend replacing in pairs |
| 48 |
62-147 #1-CA
|
62-147 #1-CA
|
Leaf Spring #1 Main Leaf |
|
| 48 |

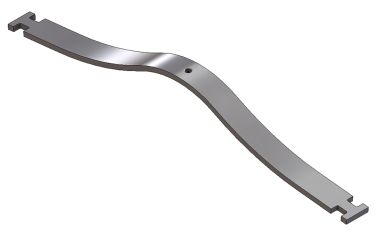

62-147 #2-US
|
62-147 #2-US
|
Leaf Spring #2 Leaf |
|
| 48 |
62-147 #2-CA
|
62-147 #2-CA
|
Leaf Spring #2 Leaf |
|
| 48 |

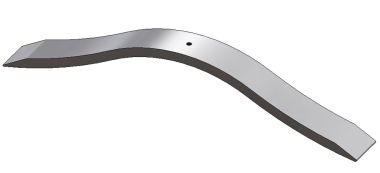

62-147 #4-CA
|
62-147 #4-CA
|
Leaf Spring #4 Leaf |
|
