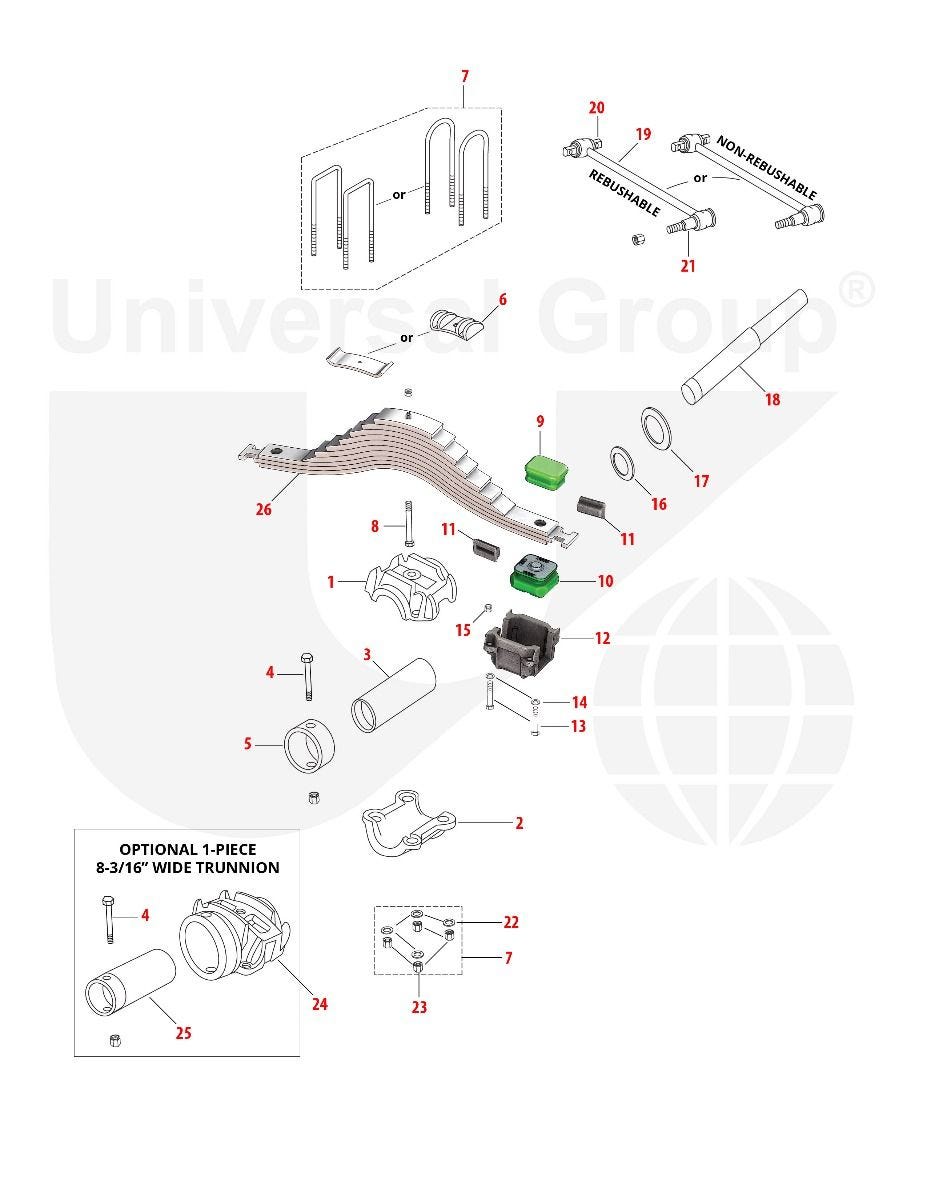

Mack : SS34-38 Camelback, w/Split Trunnions (34 & 38K)

For items with multiple options, see table below.

1 2 3 5 8 9 10 11 11 12 15 20 21 22 23 26
Grouped product items
No. SKU Product Name Description Notes

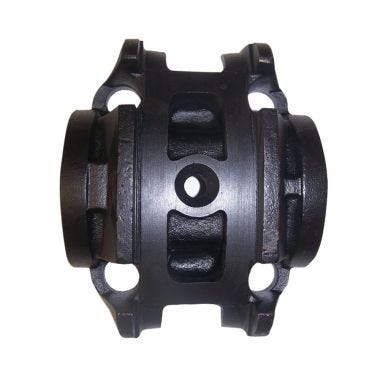

1 SE-444 SE-444 SE-444 UPPER TRUNNION SADDLE
2 SE-449 SE-449 SE-449 LOWER TRUNNION HALF
3 TBM-219P2 TBM-219P2 TBM-219P2 RUBBER TRUNNION BUSHING 4.687in OD x 3.437in ID x 6-1/4in OAL

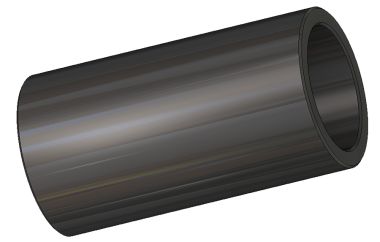

3 TBM-130P1 TBM-130P1 TBM-130P1 RUBBER TRUNNION BUSHING 4.437in OD x 3.437in ID x 8-3/8in OAL
5 SM-009 SM-009 SM-009 OUTER SPACER NEW STYLE
8 SCB-12100 SCB-12100 SCB-12100 Center Bolt and Nut 1/2in-20 x 10in L (3/4in O.D. x 7/16in H Fillister Head) (qty: 10)
9 PAD-365A-CH PAD-365A-CH PAD-365A-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER)
9 PAD-365AU-US PAD-365AU-US PAD-365AU-US LEAF SPRING INSULATOR PAD - UPPER MACK (POLYURETHANE PREMIUM)
9 PAD-370-CH PAD-370-CH PAD-370-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER)
9 PAD-370U-US PAD-370U-US PAD-370U-US LEAF SPRING INSULATOR PAD - UPPER MACK (POLYURETHANE PREMIUM)
10 PAD-36B PAD-36B PAD-36B LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER)
10 PAD-36BU-US PAD-36BU-US PAD-36BU-US LEAF SPRING INSULATOR PAD - LOWER MACK (POLYURETHANE PREMIUM)
10 PAD-36BP PAD-36BP PAD-36BP LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER PREMIUM)
11 SE-316 SE-316 SE-316 SPACER BLOCK
12 SE-412 SE-412 SE-412 INSULATOR BOX
12 SE-411 SE-411 SE-411 INSULATOR BOX
15 H-04842-000 H-04842-000 H-04842-000 GENUINE HENDRICKSON LOCK NUT 7/8in-14 UNF
20 H-44695-000 H-44695-000 H-44695-000 Genuine Hendrickson Torque Rod Bar Pin Bushing (5/8in) 5/8" Bolt Holes
20 SUB-44695 SUB-44695 SUB-44695 TORQUE ROD BAR PIN BUSHING POLYURETHANE 2-3/4 OD x 4-3/8 C-C x 5/8in BOLT 5/8" Bolt Holes
21 H-46735-000 H-46735-000 H-46735-000 Genuine Hendrickson Torque Rod Taper Pin Bushing (short)
22 UBW-114 UBW-114 UBW-114 U-Bolt Washer 1-1/4in (qty: 24)
23 DN-114 DN-114 DN-114 U-Bolt Reg. Deep Nut 1-1/4in-12 Grade 8 (qty: 24)
23 DN-114X DN-114X DN-114X U-Bolt Extra Deep Nut 1-1/4in-12 Grade 8 (qty: 8)
26 62-155-US 62-155-US 62-155-US LEAF SPRING NEW STYLE, W/O U-BOLT PLATE (JP)). 3 MAIN LEAVES; END HOLES PL-1, PL-3 - 1 3/4 DIA. REPLACES 62-113.
26 62-147-OE 62-147-OE 62-147-OE Genuine Hendrickson Leaf Spring (LONG revision) Long revision. Hole-to-Hole Length along spring plate #1: 52-5/8in. Replace in Pairs.
