Kenworth : AG200 Airglide

Skip to the end of the images gallery

Skip to the beginning of the images gallery

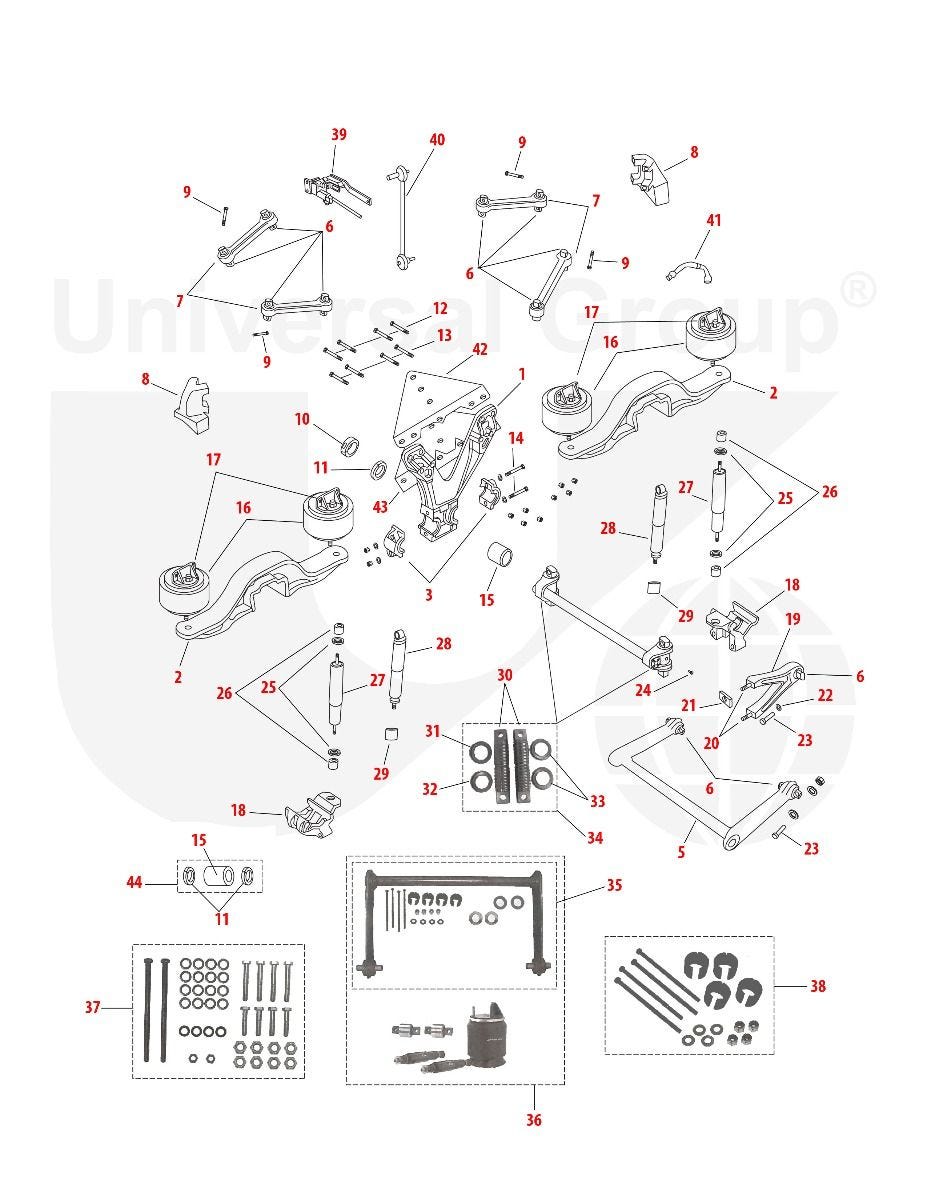

Kenworth : AG200 Airglide

For items with multiple options, see table below.

6 6 6 16 16 24 27 27 28 28 40 39

Grouped product items
No.	SKU	Product Name	Description	Notes

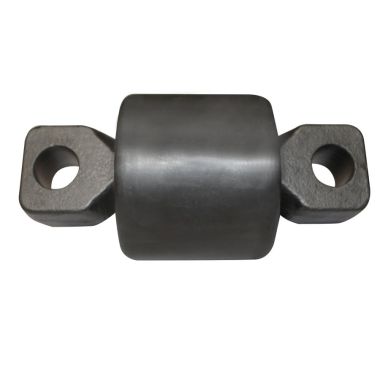

6	STB-5901	STB-5901	TORQUE ROD BAR PIN BUSHING RUBBER KENWORTH 2-3/4 OD x 4-3/8in C-C L HOLES	Bolt Holes: 0.689in Dia. x 4.375in C-C

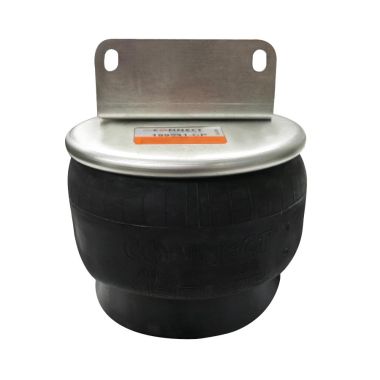

16	AB-9541	AB-9541	Air Spring-Rolling Lobe w/ Composite Piston

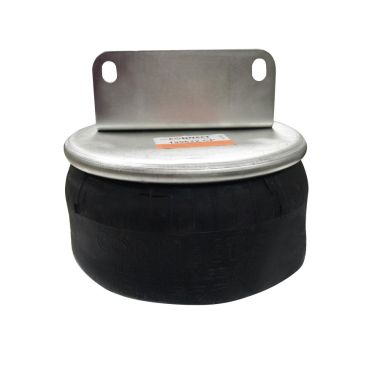

16	AB-9622	AB-9622	Air Spring-Rolling Lobe w/ Composite Piston
16	AB-9675	AB-9675	Air Spring-Rolling Lobe w/ Composite Piston
24	SGZ-18-00	SGZ-18-00	Zerk Grease Fitting 1/8in-27 PTF Straight Standard 5/8in Length	For longer lengths use SGZ-18-00L or longer H-30087-000
27	SSA-85900	SSA-85900	Genuine Gabriel Fleetline 85000 Shock Absorber

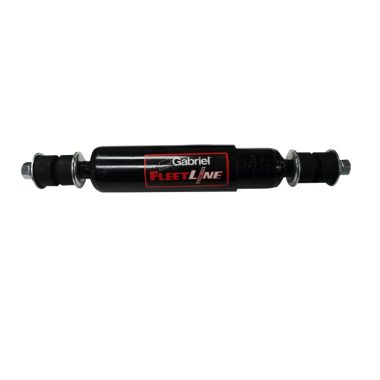

27	SSA-85902	SSA-85902	Genuine Gabriel Fleetline 85000 Shock Absorber

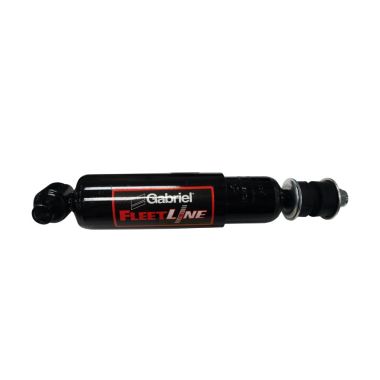

28	SSA-85936	SSA-85936	Genuine Gabriel Fleetline 85000 Shock Absorber

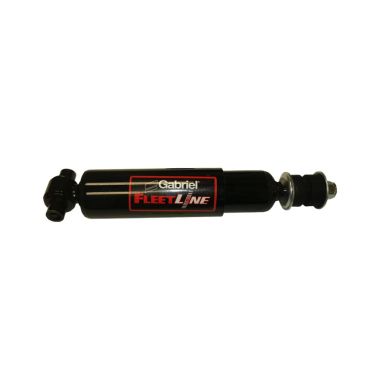

28	SSA-85937	SSA-85937	Genuine Gabriel Fleetline 85000 Shock Absorber
