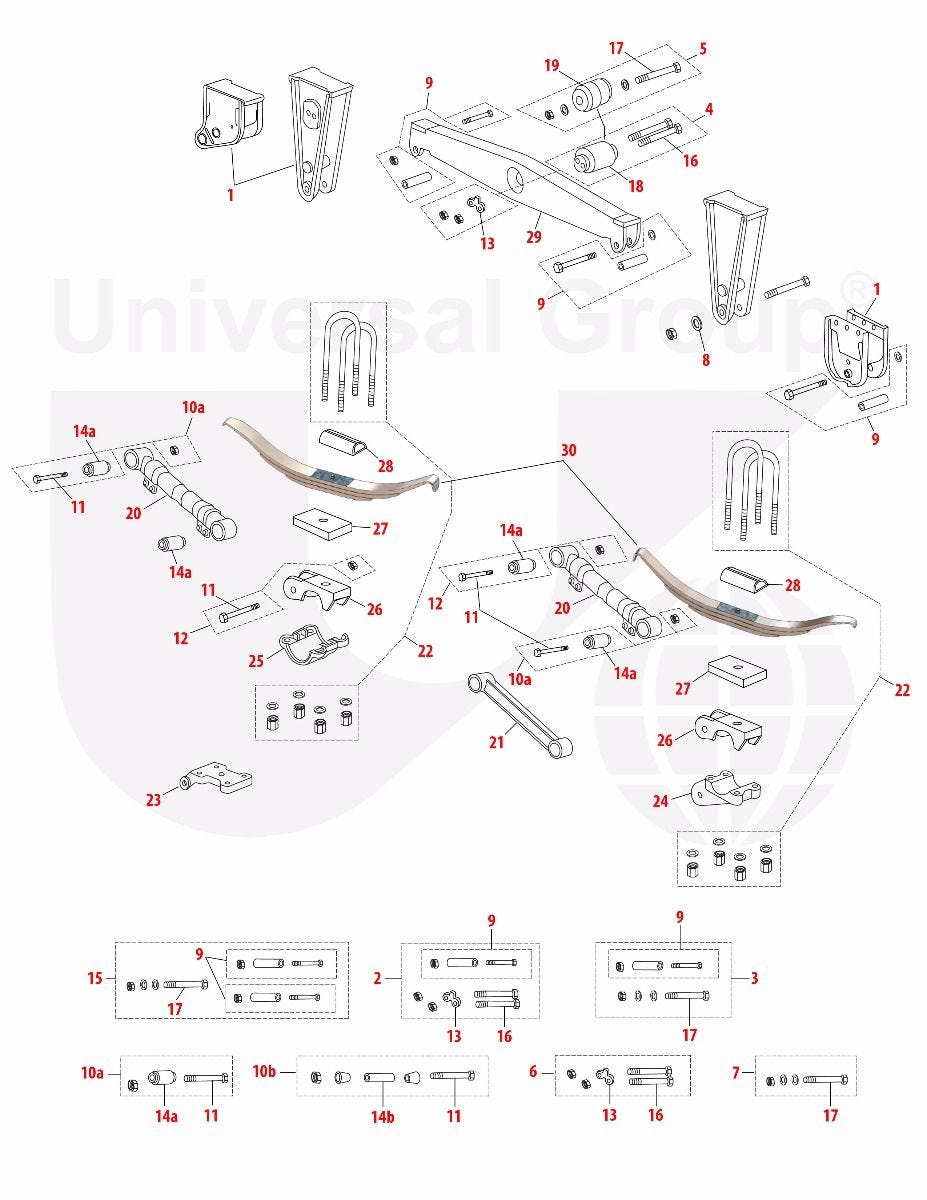

Hutch : H/CH 7700, 9700 Widespread

For items with multiple options, see table below.

1 2 5 1 7 9 9 9 9 9 9 11 11 11 11 11 14a 14a 14a 14a 17 17 17 18 19 20 20 21 25 27 27 28 28 30
Grouped product items
No. SKU Product Name Description Notes

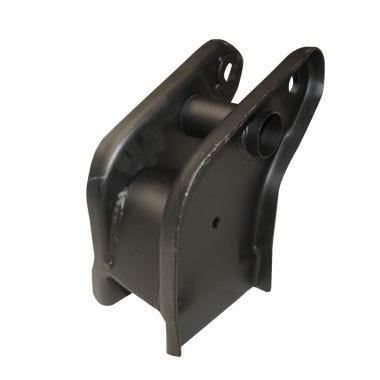

1 SHU-770101 SHU-770101 SHU-770101 Hanger - Front Straddle Mount

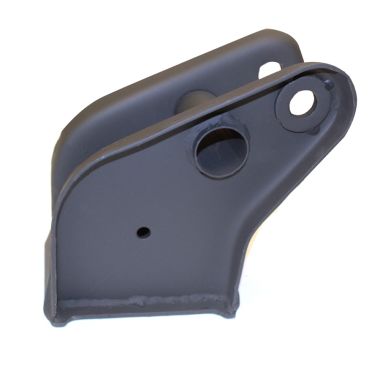

1 SHU-770102 SHU-770102 SHU-770102 SPRING HANGER - UNDERMOUNT

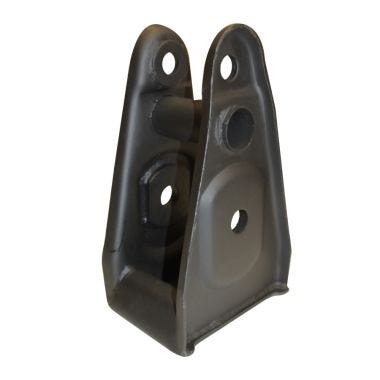

1 SHU-1617101 SHU-1617101 SHU-1617101 Hutchens Center Hanger

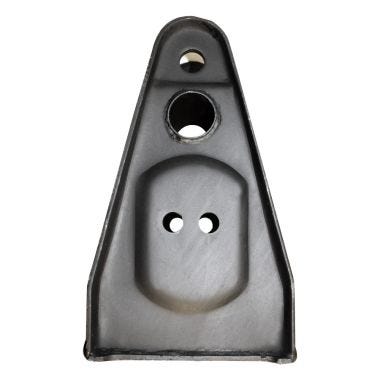

1 SHU-770202 SHU-770202 SHU-770202 EQUALIZER HANGER - UNDERMOUNT
1 SHU-770302 SHU-770302 SHU-770302 SPRING HANGER - UNDERMOUNT
2 SHU-75003-BK SHU-75003-BK SHU-75003-BK Equalizer-Rebound Roller Bolt Kit - Hutch (10287-01)
5 SRE-1004 SRE-1004 SRE-1004 EQUALIZER BUSHING KIT REYCO- RUBBER
7 SHU-1635301-BK SHU-1635301-BK SHU-1635301-BK Equalizer Bolt KIt - Hutchens
9 SHU-74100 SHU-74100 SHU-74100 Bolt Roller Assembly - Hutchens

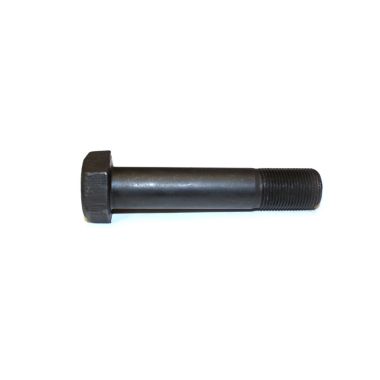

11 SHU-71902 SHU-71902 SHU-71902 TORQUE ROD BOLT 1.0in-14 x 5in HUTCHENS Bolt SHU-71902 and Lock Nut SHU-10562 can be used in combination for Hutch 28699-01 and 28696-01.
11 SHU-10562 SHU-10562 SHU-10562 Torque Rod Flange Lock Nut 1in-14 UNS Bolt SHU-71902 and Lock Nut SHU-10562 can be used in combination for Hutch 28699-01 and 28696-01.

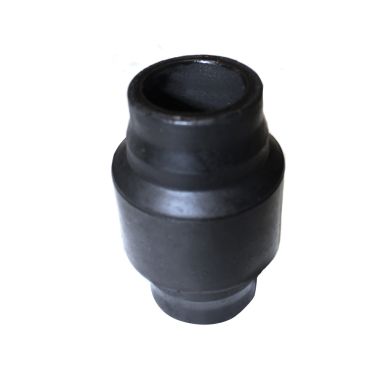

14a SHU-72200 SHU-72200 SHU-72200 TORQUE ROD BUSHING RUBBER 1.907in OD x 1in ID x 3in OAL
17 SHU-1615001 SHU-1615001 SHU-1615001 Equalizer Bolt 1-1/8in -7 x 6-5/8in. Grade 8 - Hutchens
18 SHU-701000 SHU-701000 SHU-701000 RUBBER EQUALIZER BUSHING 3.375in OD x 2 x 0.75in ID x 3.875 OAL
19 SHU-1614601 SHU-1614601 SHU-1614601 Equalizer Rubber Bushing - Hutchens 3.375in OD x 1.125in ID x 3.875 OAL

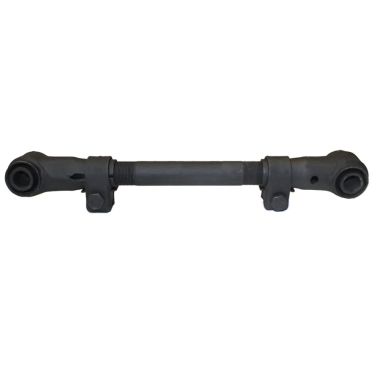

20 SHU-71305 SHU-71305 SHU-71305 Torque Rod Adjustable H-H (18-1/2 to 21 in) - Hutchens

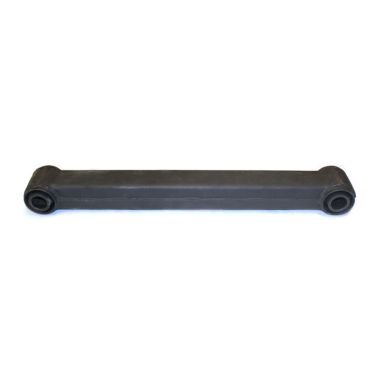

21 SHU-71500 SHU-71500 SHU-71500 Torque Rod Assembly Rigid H-H (19-1/4 in)

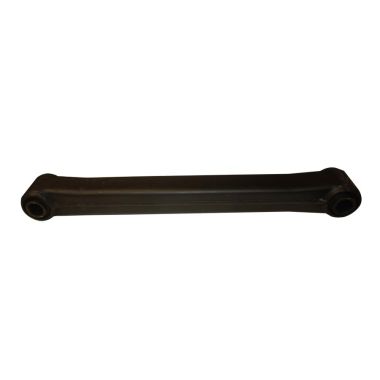

21 SWC-12954 SWC-12954 SWC-12954 Genuine Watson and Chalin Torque Rod Assembly Rigid H-H (19-1/4 in)
25 SRE-0538-00 SRE-0538-00 SRE-0538-00 Genuine Reyco INVERTED U-BOLT BOTTOM PLATE for 5in ROUND AXLE HUTCH
25 SHU-71000 SHU-71000 SHU-71000 U-Bolt Bottom Plate - NEWAY/REYCO/TRANSPRO/HUTCHENS
27 SRE-24081-01 SRE-24081-01 SRE-24081-01 Genuine Reyco SPACER 1in DUCT IRON REPLACED BY T7716
27 SRE-T7716 SRE-T7716 SRE-T7716 Genuine Reyco SPACER BLOCK 1in HIGH A/S 101/102 REPLACES 24081-01
28 SHU-702900 SHU-702900 SHU-702900 U-Bolt Top Plate - Hutchens/Reyco/Dana
30 TRA-021-ME TRA-021-ME TRA-021-ME Trailer Leaf Spring Tapered 3in Wide x 1/Leaf HOOK PLATE PL-1 B.E. ARCH CLASS LOW
30 TRA-090-US TRA-090-US TRA-090-US Trailer Leaf Spring Composite 3in Wide x 1/Leaf-Hutchens
30 TRA-2728-ME TRA-2728-ME TRA-2728-ME Trailer Leaf Spring 3in Wide x 3/Leaf HOOK PLATE PL-1 B.E. ARCH CLASS LOW
30 TRA-2728-CH TRA-2728-CH TRA-2728-CH THREE LEAF SPRING HOOK PLATE PL-1 B.E. ARCH CLASS LOW
30 TRA-2727-ME TRA-2727-ME TRA-2727-ME Trailer Leaf Spring 3in Wide x 3/Leaf-Hutchens
30 TRA-2726-ME TRA-2726-ME TRA-2726-ME Trailer Leaf Spring 3in Wide x 3/Leaf HOOK PLATE PL-1 B.E. ARCH CLASS HIGH
30 TRA-2732-ME TRA-2732-ME TRA-2732-ME Trailer Leaf Spring 3in Wide x 8/Leaf HOOK PLATE PL-3 S.E. ARCH CLASS LOW SHAPE SE TRUE RADIUS LE TRUE RADIUS
30 TRA-2706-ME TRA-2706-ME TRA-2706-ME Trailer Leaf Spring 3in Wide x 7/Leaf HOOK PLATE PL-3 S.E. ARCH CLASS LOW SHAPE SE TRUE RADIUS LE TRUE RADIUS
30 TRA-2705-ME TRA-2705-ME TRA-2705-ME Trailer Leaf Spring 3in Wide x 7/Leaf HOOK PLATE PL-3 S.E. ARCH CLASS HIGH SHAPE SE TRUE RADIUS LE TURN BACK
