HT-S22046
Description

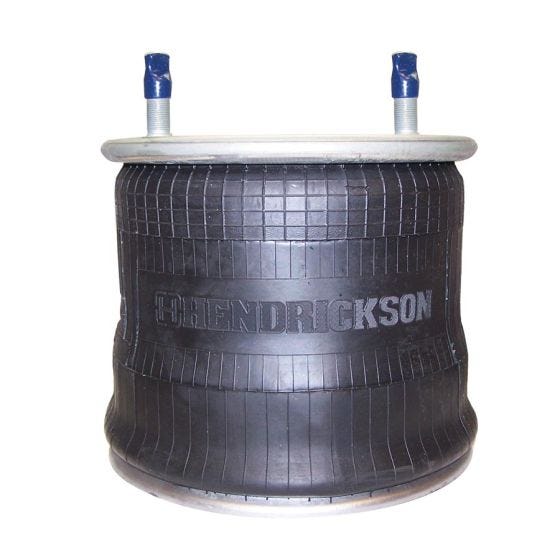

GENUINE HENDRICKSON AIR SPRING
Alternate SKU
352-8710, 3528710, AB1DK25B-8755, AB1DK25B8755, S-22046, S22046, 1R13-124, 1R13124, AS8522, 8755, HTS22046, 1DK25B8755, 8710, 8522, AS-8522, FS8755, W01-358-8755, W013588755, 10 10-15 P 522, 64397
Weight
18.50
- Attribute Value
- Product Name HT-S22046
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 10.38 in
- Make Hendrickson
- Continental Bellows 10 10-15
- Firestone Bellows 1T17B5
- Goodyear Bellows 566-26-3-050
- Top Plate Bolt Hole Quantity 2
- Top Plate Diameter (in) 10.38 in
- Mounting Hardware Included No
- Bottom Plate Diameter (in) 9.38 in
- Bottom Plate Diameter 9.38 in
- Minimum Height (in) 7.40 in
- Minimum Height 7.4 in
- Maximum Height (in) 19.70 in
- Maximum Height 19.7 in
- Bellows Color Black
- Bellows Material Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DK25B-8755
- Continental 64397
- Continental Bellows 10 10-15
- Dayton 352-8710
- Firestone W01-358-8755
- Firestone Bellows 1T17B5
- Flagg/Triangle AS-8522
- Goodyear 1R13-124
- Goodyear Bellows 566-26-3-050
- Hendrickson S-22046
- Meritor FS8755
