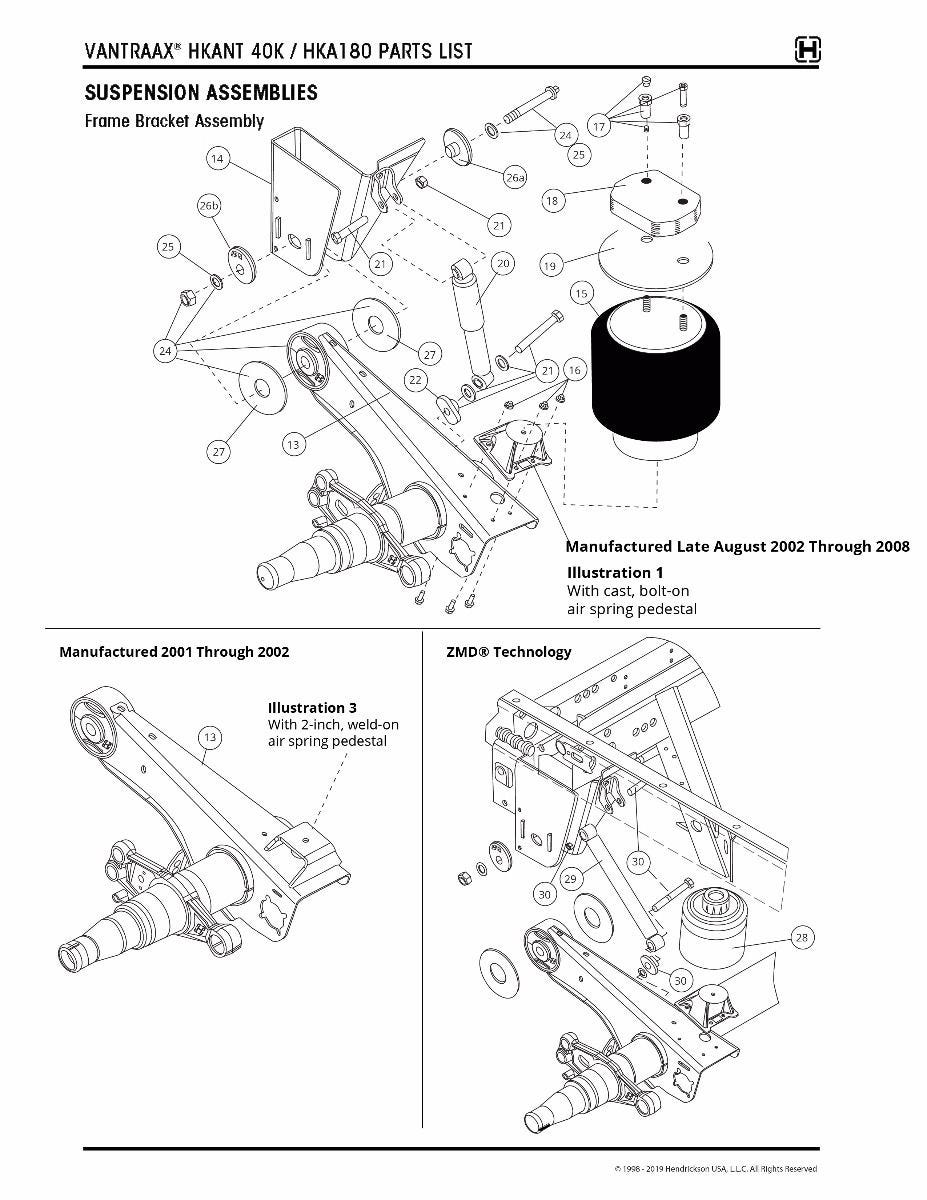

Hendrickson : VANTRAAX HKANT 40K / HKA180 - Trailer Susp.

For items with multiple options, see table below.

14 15 17 18 21 25 21 26a 26b 27 27 28 21 25

Grouped product items
No.	SKU	Product Name	Description	Notes

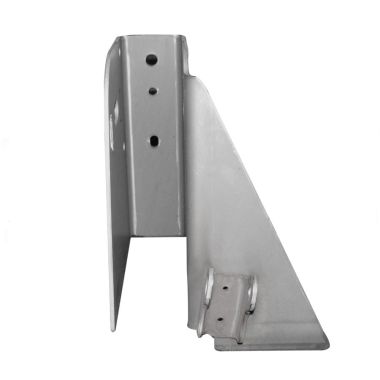

14	HT-S32194-2R	HT-S32194-2R	GENUINE HENDRICKSON SLIDER FRAME HANGER (RH)
14	HT-S32194-2L	HT-S32194-2L	GENUINE HENDRICKSON SLIDER FRAME HANGER (LH)

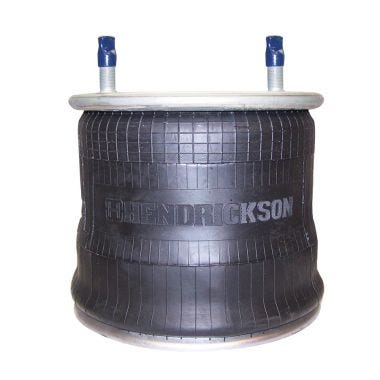

15	HT-S22948	HT-S22948	GENUINE HENDRICKSON AIR SPRING
15	AB-8713	AB-8713	Air Spring-Rolling Lobe w/ Composite Piston

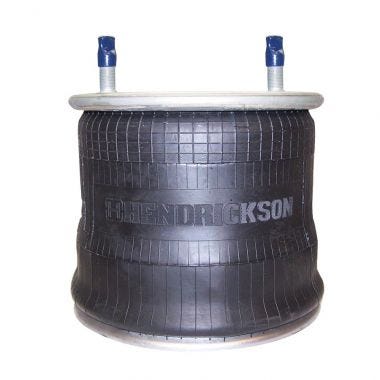

15	HT-S28929	HT-S28929	GENUINE HENDRICKSON AIR SPRING

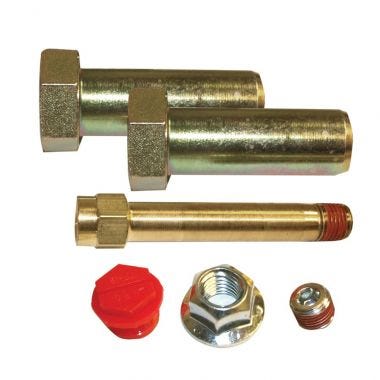

17	HT-S22632/2	HT-S22632/2	Genuine Hendrickson Air Spring Fitting/Mounting Kit
17	HT-S22631/2	HT-S22631/2	Genuine Hendrickson Air Spring Fitting/Mounting Kit
17	HT-S22630/2	HT-S22630/2	Genuine Hendrickson Air Spring Fitting/Mounting Kit
18	HT-B22510-4	HT-B22510-4	GENUINE HENDRICKSON AIR SPRING SPACER (MOST HT/HS) 3/4in Height
18	HT-B22510-3	HT-B22510-3	GENUINE HENDRICKSON AIR SPRING SPACER (MOST HT/HS) 3-1/8in Height
18	HT-B22510-2	HT-B22510-2	GENUINE HENDRICKSON AIR SPRING SPACER (MOST HT/HS) 1-7/8in Height
18	HT-B22510-1	HT-B22510-1	GENUINE HENDRICKSON AIR SPRING SPACER (MOST HT/HS) 1-1/8in Height

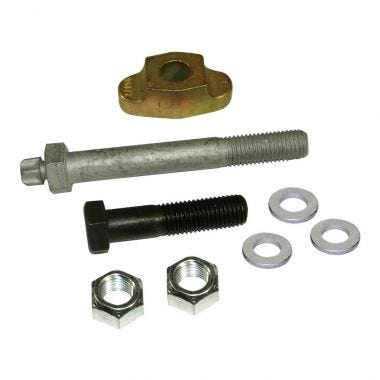

21	HT-S24049/2	HT-S24049/2	GENUINE HENDRICKSON ZMD Hardware
25	HT-S24705	HT-S24705	Genuine Hendrickson Bolt Kit for Pivot Bushing (narrow)
26a	HT-S20924	HT-S20924	GENUINE HENDRICKSON INNER WASHER - FLANGED
26b	HT-S20925	HT-S20925	GENUINE HENDRICKSON ECCENTRIC WASHER - FLANGED
27	HT-S26807	HT-S26807	GENUINE HENDRICKSON BUSHING TUBE SPACER (NARROW)

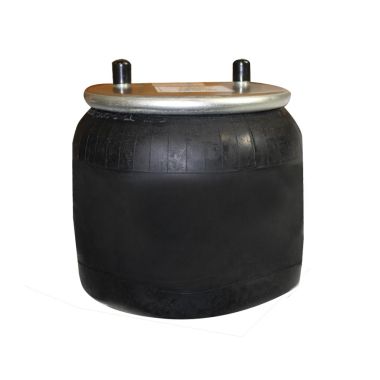

28	HT-S33161	HT-S33161	GENUINE HENDRICKSON ZERO MAINTENANCE DAMPING (ZMD) AIR SPRING
