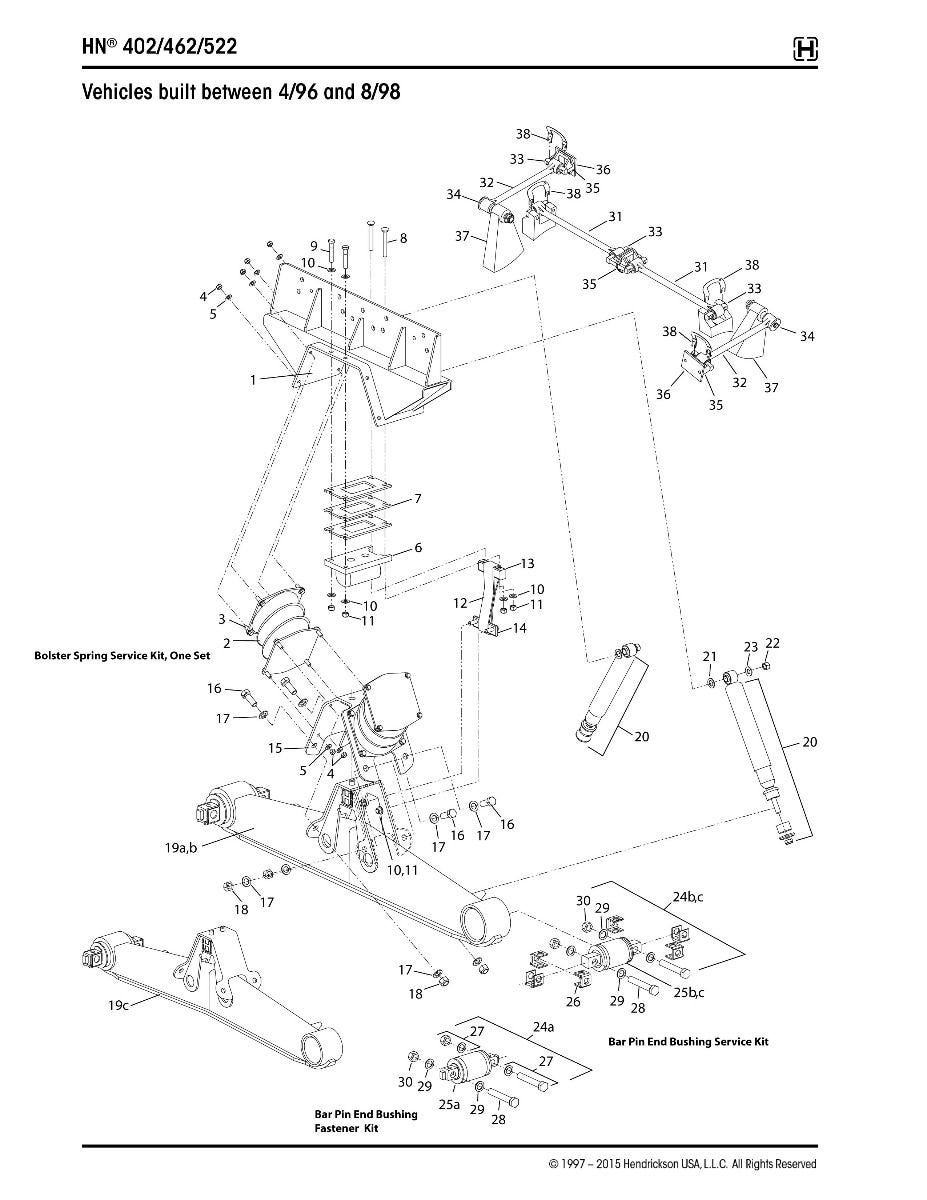

Hendrickson : HN 40K, 46K, 52K vehicles built 4/96 - 8/98

For items with multiple options, see table below.

2 12 14 15 19a 24a 24b 26 27 33 34 35 38 38 38 38 20 20
Grouped product items
No. SKU Product Name Description Notes
2 H-60879-000 H-60879-000 H-60879-000 GENUINE HENDRICKSON BOLSTER SPRING
12 H-57878-003 H-57878-003 H-57878-003 REBOUND STRAP
14 H-60639-000 H-60639-000 H-60639-000 GENUINE HENDRICKSON ANCHOR PLATE ASSEMBLY

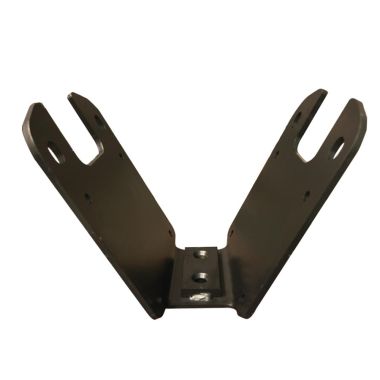

15 H-58343-001 H-58343-001 H-58343-001 SADDLE VEE BRACKET PAINTED
19a H-58494-002 H-58494-002 H-58494-002 GENUINE HENDRICKSON 54in Beam Assembly with Shock Brackets Production part; with Rotating Bar Pin Bushings and Shock Absorber Brackets.
20 H-60680-003 H-60680-003 H-60680-003 Genuine Hendrickson HN Shock Absorber
24a H-34013-087L H-34013-087L H-34013-087L GENUINE HENDRICKSON BAR PIN KIT (WITHOUT SHIMS) Shims not included.
24b H-34013-088L H-34013-088L H-34013-088L GENUINE HENDRICKSON BAR PIN END BUSHING KIT (WITH SHIMS) (2) 0.25 in x 0.12in shims included
24c H-34013-188L H-34013-188L H-34013-188L GENUINE HENDRICKSON ROTATING BAR PIN BUSHING WITH SHIMS Includes (2) 0.25in x 0.12in shims
26 H-50131-000 H-50131-000 H-50131-000 GENUINE HENDRICKSON BAR PIN SHIM 0.25 x 0.12in
26 H-50130-000 H-50130-000 H-50130-000 GENUINE HENDRICKSON BAR PIN SHIM 0.19 x 0.19in
27 H-34013-104 H-34013-104 H-34013-104 GENUINE HENDRICKSON BAR PIN BUSHING FASTENER KIT-(2)BOLTS (4)WASHERS (2)NUTS
33 H-47691-000 H-47691-000 H-47691-000 GENUINE HENDRICKSON TORQUE ROD BAR PIN BUSHING For 5/8" Bolt Holes
33 H-64400-002 H-64400-002 H-64400-002 GENUINE HENDRICKSON TORQUE ROD BAR PIN BUSHING
33 H-66649-002L H-66649-002L H-66649-002L GENUINE HENDRICKSON XTRB TORQUE ROD BAR PIN BUSHING
34 H-64697-000 H-64697-000 H-64697-000 GENUINE HENDRICKSON TORQUE ROD TAPER PIN BUSHING
34 H-66649-004L H-66649-004L H-66649-004L GENUINE HENDRICKSON XTRB TORQUE ROD TAPER PIN BUSHING
35 H-22186-000 H-22186-000 H-22186-000 GENUINE HENDRICKSON TORQUE ROD FRAME BRACKET
38 H-49689-000 H-49689-000 H-49689-000 Genuine Hendrickson Torque Rod Shim 1/16in (1.52mm) 1/16in 0.06in (1.52mm)
