Hendrickson : Haulmaax

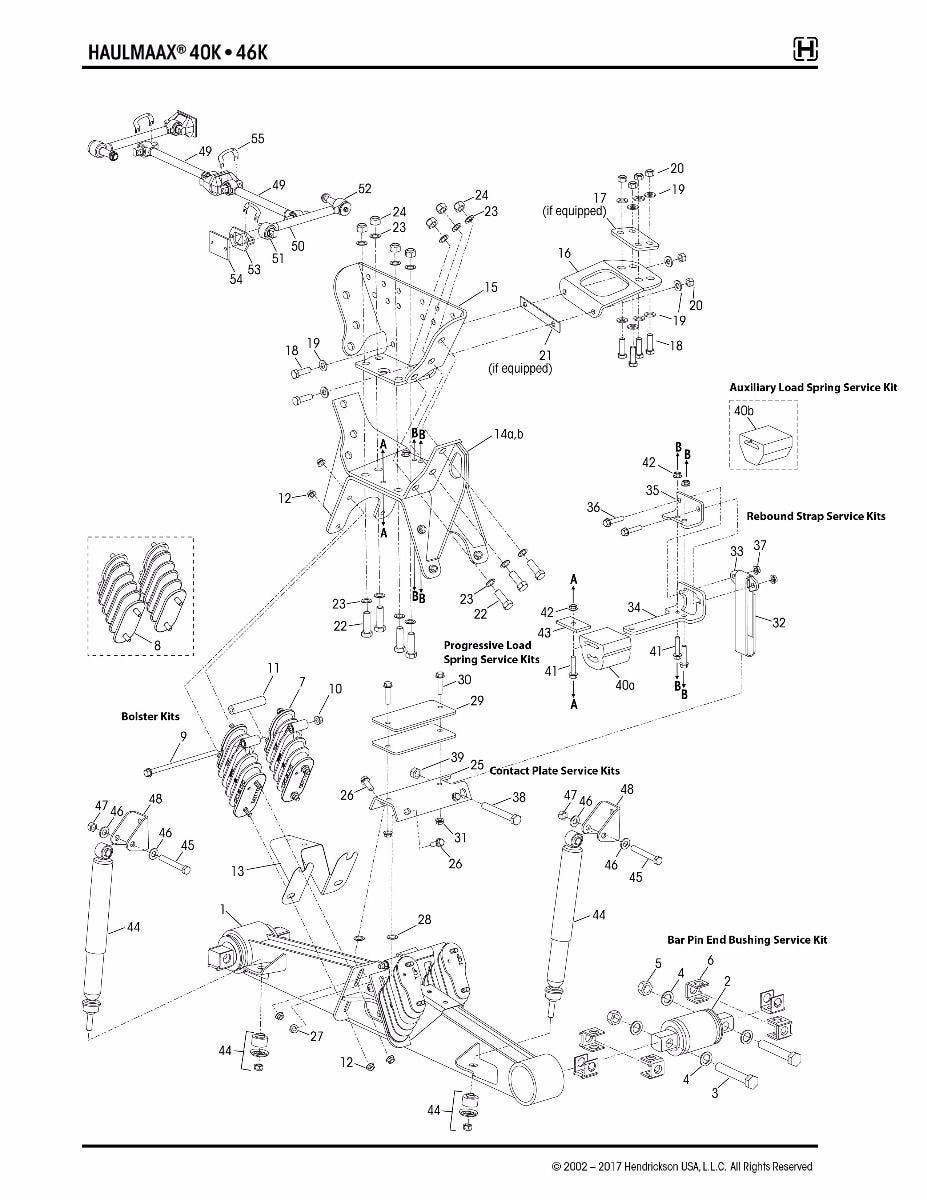

For items with multiple options, see table below.

1. 54in Beam w/Shock Bracket Rotating Bushings (Service) 7. 060961-712 7. 064179-048 * Varies by application 8. 40K Susp. Only * * * 15. Frame 34.3-34.5in W x 16.5in H 14a: 40K 14b: 46K 15. Frame 34.68-34.94in W x 16.5in H 15. Frame 34.0in W x 18.5in H 44. Gabriel Shock 44. Hendrickson Shock 44. Hendrickson Kit-16.5in 44. Hendrickson Kit-17.5in/18.5in * * * * * * Varies by length 22, 23, 24: One-Side Bolt Kit 22, 23, 24: Tandem Bolt Kit 1. 54in Beam w/Shock Bracket Non-Rotating Bushings (Production)
Grouped product items
No. Sku Product Name Description Alternate SKU
1_1 H-64846-001 H-64846-001 GENUINE HENDRICKSON 54in BEAM ASSEMBLY with Bracket 338-2048, 3382048, MHS6481, 064846-001, 64846-001, 064846001, 64846001, 64846-1, 648461, H64846001
1_2 H-80225-001 H-80225-001 GENUINE HENDRICKSON HMX460 Haulmaax 54in Beam Assembly with Bracket 338-2435, 3382435, MHS6481, 080225-001, 80225-001, 080225001, 80225001, 80225-1, 802251, 64846-001, 64846001, 64846-1, 648461, H80225001
2 H-34013-088L H-34013-088L GENUINE HENDRICKSON BAR PIN KIT (WITH SHIMS) 334-831, 334831, BP200, 034013-088L, 34013-088L, 034013088L, 34013088L, 034013-088, 34013-088, 034013088, 34013088, BP88, E9326, 1324249, HE1147, H34013088L
2 H-34013-188L H-34013-188L GENUINE HENDRICKSON ROTATING BAR PIN BUSHING WITH SHIMS 334-1957, 3341957, BP199, 034013-188L, 34013-188L, 034013188L, 34013188L, 034013-188, 34013-188, 034013188, 34013188, BP188, H34013188L
3 H-34013-104 H-34013-104 GENUINE HENDRICKSON BAR PIN BUSHING FASTENER KIT-(2)BOLTS (4)WASHERS (2)NUTS 334-832, 334832, BPK100, 034013-104, 34013-104, 034013104, 34013104, H34013104, B1509-50, B150950
6 H-50131-000 H-50131-000 BAR PIN SHIM 0.25 x 0.12 334-880, 334880, MHS108, 050131-000, 50131-000, 050131000, 50131000, HS42, E9328, H50131000
6 H-50130-000 H-50130-000 BAR PIN SHIM 0.19 x 0.19 334-879, 334879, MHS106, 050130-000, 50130-000, 050130000, 50130000, H50130000, HS41, E9327
25 H-57974-046 H-57974-046 GENUINE HENDRICKSON AUX SPRING CONTACT PLATE FASTENER KIT 334-2120, 3342120, M1987, 057974-046, 57974-046, 057974046, 57974046, H57974046
29 H-60791-000 H-60791-000 AUXILLIARY SPRING SHIM (.25) 334-1728, 3341728, A109, 060791-000, 60791-000, 060791000, 60791000, H60791000

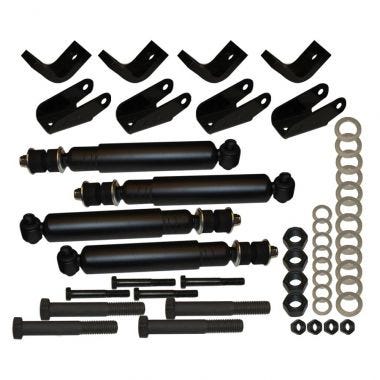

44_3 H-64178-003 H-64178-003 Genuine Hendrickson HAULMAAX Service Shock Kit (16.5) 334-1725, 3341725, MHSK300, 064178-003, 64178-003, 064178003, 64178003, H64178003

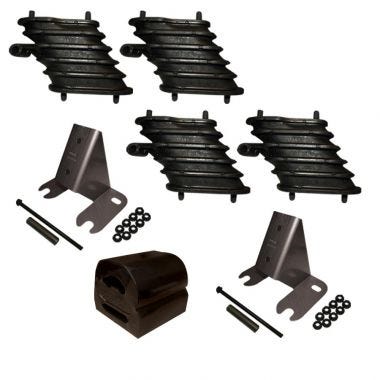

7_712 H-60961-712 H-60961-712 HMX SERVICE KIT (2 x H-64179-048 & 1 x H-67778-000) 334-2229, 3342229, MLC5KTAUX, 060961-712, 60961-712, 060961712, 60961712, H60961712, HS173

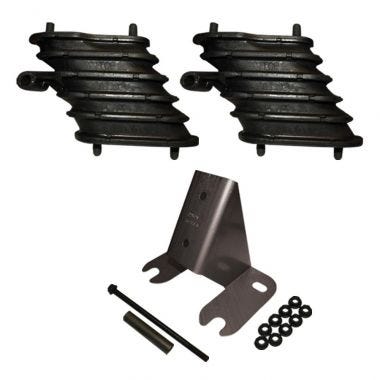

7_048 H-64179-048 H-64179-048 GENUINE HENDRICKSON HAULMAAX BOLSTER SPRING KIT TIE-BAR WITH WEAR PAD 334-2036, 3342036, MLC5KT, 064179-048, 64179-048, 064179048, 64179048, H64179048, 64179-037, 64179037, H64179037, 64179-37, 6417937, 64179-48, 6417948, HS172

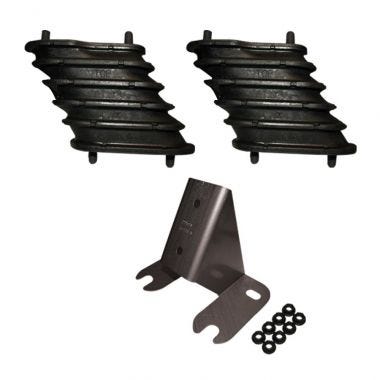

8 H-64179-049 H-64179-049 GENUINE HENDRICKSON HAULMAAX BOLSTER SPRING WITH WEAR PAD 334-2035, 3342035, MLC3KT, 064179-049, 64179-049, 064179049, 64179049, H64179049
13 H-64890-000 H-64890-000 GENUINE HENDRICKSON 460 WEAR PAD 334-1719, 3341719, MHS448, 064890-000L, 64890-000L, 064890000L, 64890000L, 064890-000, 64890-000, 064890000, 64890000, H64890000, HS101,  HS148, E14535
14a H-64642-000 H-64642-000 GENUINE HENDRICKSON SADDLE ASSEMBLY 338-1931, 3381931, MHS46420, 064642-000, 64642-000, 064642000, 64642000, 64642, MHS-46420, H64642000
14b H-64643-000 H-64643-000 GENUINE HENDRICKSON SADDLE ASSEMBLY 338-1932, 3381932, MHS46430, 064643-000, 64643-000, 064643000, 64643000, 64643, MHS-46430, H64643000
15_1 H-64636-001 H-64636-001 FRAME BRACKET O/B 16.5/34.5 338-2402, 3382402, MHS6461, 064636-001, 64636-001, 064636001, 64636001, H64636001, MHS-6461
15_104 H-64595-104 H-64595-104 HMX FRAME BRACKET O/B 16.5/34.75 338-2291, 3382291, MHS6454, 064595-104, 64595-104, 064595104, 64595104, H64595104
16 H-60617-502 H-60617-502 GENUINE HENDRICKSON Frame Hanger Bracket I/B 338-2266, 3382266, MHS6051, 060617-502, 60617-502, 060617502, 60617502, H60617502

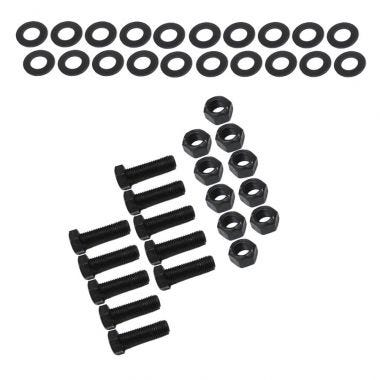

22, 23, 24_1 H-64179-039 H-64179-039 HMX O/B BKT Mounting Kit MHS223, 064179-039, 64179-039, 064179039, 64179039, H64179039

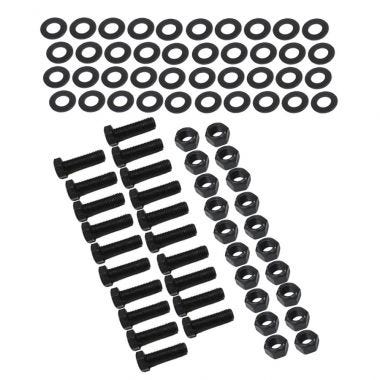

22, 23, 24_2 H-64179-038 H-64179-038 HMX O/B to Saddle Assembly Kit 334-1721, 3341721, MHS223, 064179-038, 64179-038, 064179038, 64179038, H64179038, 64179-029, 64179029, 64179-039, 64179039
34 H-59384-000 H-59384-000 AUX SPRING MOUNTING BRACKET 338-1934, 3381934, MHS227, 059384-000, 59384-000, 059384000, 59384000, H59384000, HS156
35 H-60613-000 H-60613-000 Genuine Hendrickson REBOUND SUPPORT ANGLE BRACKET 338-2406, 3382406, MHS293, 060613-000, 60613-000, 060613000, 60613000, H60613000, MHS-293
15_3 H-64595-003 H-64595-003 Genuine Hendrickson Outboard Frame Bracket-18.5in Saddle H x 34in Frame W 338-2292, 3382292, MHS6453, 064595-003, 64595-003, 064595003, 64595003, H64595003, MHS-6453
40a H-60961-747 H-60961-747 Genuine Hendrickson Tandem Progressive Load Spring (PLS)/Retro Fit Kit 334-2031, 3342031, MHS58948K2, 060961-747, 60961-747, 060961747, 60961747, HS161, H60961747

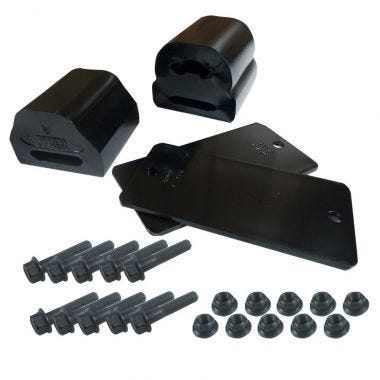

40b H-60961-746 H-60961-746 Genuine Hendrickson HAULMAAX Weight Bias Cushion and Shim Kit 334-2030, 3342030, MHS58949K, 060961-746, 60961-746, 060961746, 60961746, H60961746
44 SSA-83112 SSA-83112 Genuine Gabriel Fleetline 83000 Shock Absorber M66648, A83112, 83112, 654905, 60680-003L, 60680003L, 60680-003, 60680003, 57241-003, 57241003, 060680-003L, 060680003L, 060680-003, 060680003, 057241-003, 057241003, 66648, SSA83112, 341-60680-3, 341606803
44a H-60680-004 H-60680-004 Genuine Hendrickson HAULMAAX Shock Absorber M65507, A83143, 060680-004, 60680-004, 060680004, 60680004, 83143, 65507, H60680004, 341-60680-4, 341606804
44_G SSA-83142 SSA-83142 Genuine Gabriel Fleetline 83000 Shock Absorber M65508, A83142, 83142, 659049, 60680-005L, 60680005L, 60680-005, 60680005, 060680-005L, 060680005L, 060680-005, 060680005, 65508, SSA83142
44_4 H-64178-004 H-64178-004 Genuine Hendrickson HAULMAAX Service Shock Kit (17.5/18.5) 334-1726, 3341726, MHSK302, 064178-004, 64178-004, 064178004, 64178004, H64178004
44_H H-60680-005 H-60680-005 Genuine Hendrickson HAULMAAX Shock Absorber M65508, A83142, 060680-005, 60680-005, 060680005, 60680005, SSA-83142, SSA83142, 83142, 65508, H60680005, 341-60680-5, 341606805
51_0 H-47691-000 H-47691-000 GENUINE HENDRICKSON TORQUE ROD BAR PIN BUSHING 321-223, 321223, TRB6185, 047691-000L, 47691-000L, 047691000L, 47691000L, 047691-000, 47691-000, 047691000, 47691000, HS44, E5275, 1146741, HE1228, H47691000, 44697000, A16119448000
51_22 H-66649-002L H-66649-002L GENUINE HENDRICKSON XTRB TORQUE ROD BAR PIN BUSHING 321-132HD, 321132HD, TRB6642, 066649-002L, 66649-002L, 066649002L, 66649002L, 066649-002, 66649-002, 066649002, 66649002, H66649002L
52 H-64697-000H H-64697-000H GENUINE HENDRICKSON TORQUE ROD TAPER PIN BUSHING 321-360, 321360, TRB6179, 064697-000H, 64697-000H, 064697000H, 64697000H, HS73, H64697000H, 64697-000, 64697000, E14048
52_2 H-66649-004L H-66649-004L GENUINE HENDRICKSON XTRB TORQUE ROD TAPER PIN BUSHING 321-133HD, 321133HD, TRB6644, 066649-004L, 66649-004L, 066649004L, 66649004L, 066649-004, 66649-004, 066649004, 66649004, H66649004L
53 H-22186-000 H-22186-000 TORQUE ROD FRAME BRACKET 338-181, 338181, M1978, 022186-000, 22186-000, 022186000, 22186000, E336-50, E33650, E2634, 1281881, HE1054, 90018042, 752999C-1, 752999C1, H22186000, M919
55 H-49689-000 H-49689-000 TORQUE ROD SHIM 334-526, 334526, MHS68, 049689-000, 49689-000, 049689000, 49689000, H49689000, HE1002, FL56, E3790

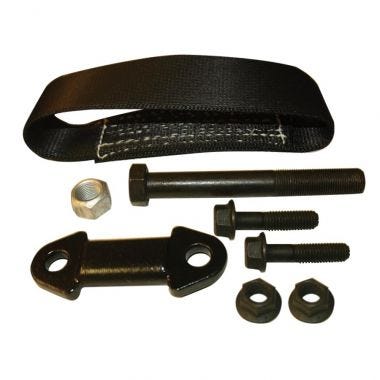

56 H-64179-028 H-64179-028 REBOUND STRAP KIT 334-1722, 3341722, MHS231, 064179-028, 64179-028, 064179028, 64179028, H64179028
