H-60961-827

Description

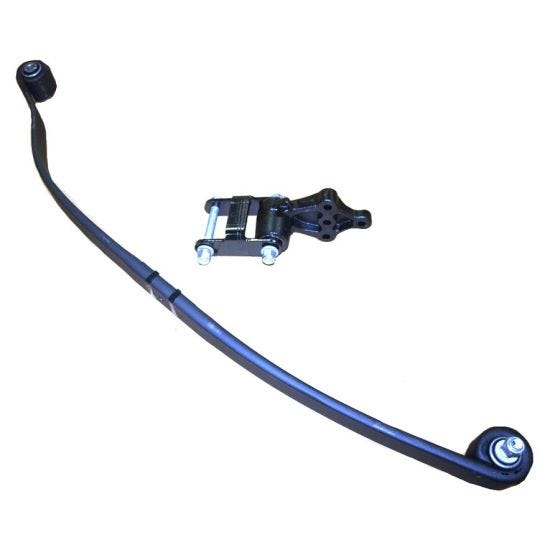

Leaf Spring (50-304) and Shackle Replacement Service Kit (LH)
Alternate SKU
50-304, 50304, MHS50743K, 060961-827, 60961-827, 060961827, 60961827, H60961827, 53711-000, 53711000, 53711, 068274-003, 68274-003, 68274003, 68274-3
Weight
98.00
  • Attribute Value
  • Product Name H-60961-827
  • Axle Orientation Front
  • Leaf Width 3 in
  • Leaves 1
  • Pack Thickness 1.085 in
  • Length Axis 1 26.75 in
  • Length Axis 2 32 in
  • Free Arch Length 6.5625 in
  • Grading Configuration 1/1.085 FULL TAPER
  • Pack Quantity 1
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included Yes
  • End 1 Bushing RB344
  • End 2 Bushing RB345
  • Helper Spring No
  • Load Rate 6000 lb
  • Suspension Grade Type Premium
  • Spring Research Institute Number 50-304
  • Make Hendrickson
  • Company Sku
  • Automann MHS50743K
  • Dayton 50-304
  • Hendrickson 060961-827
Includes Spring 053711-000 (50-304) and Shackle 068274-003.
