H-60271-002

Description

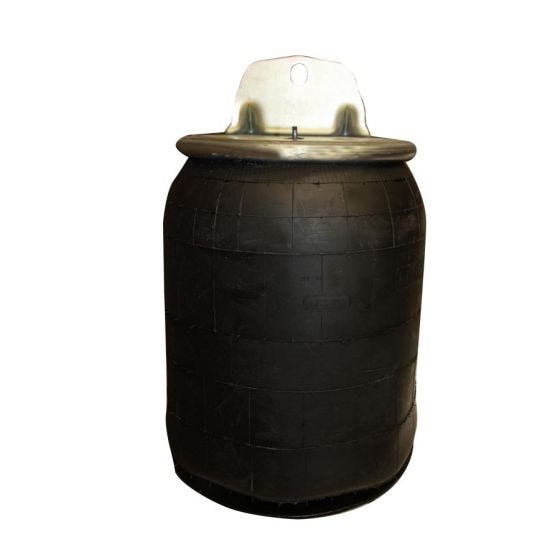

GENUINE HENDRICKSON AIR SPRING

Alternate SKU

60271-002, 60271002, 60271-2, AB1DK23M-9663, 566.CT67573, 566.ER9663, 060271-002, 060271002, 60271-002L, 60271002L, 20755320,, AS8771, AS-8771, FS9663, H60271002, W01-358-9663, 352-9663, 452-9663, AS-8771, AS-8939, 57WL57M, 1R12-1093, 67573, 9 10-18.5 P 939 (BK)

Weight

16.38

Specifications

Attribute Value
Product Name H-60271-002
Make Hendrickson
Continental Bellows 9 10-18.5
Firestone Bellows 1T15M8
Goodyear Bellows 566-24-3-170
Maximum Height 22
Minimum Height 6
Top Plate Bolt Hole Quantity 2
Top Plate Diameter 9
Bottom Plate Diameter 10
Air Spring Type Rolling Lobe
Bottom Plate Bolt Hole Quantity 1

Applications

Cross Reference

Company Sku
Automann AB1DK23M-9663, 566.CT67573, 566.ER9663
Automann Bellows 1DK23M
Continental 67573
Continental Bellows 9 10-18.5
Dayton 60271-002, 352-9663, 452-9663
Firestone W01-358-9663
Firestone Bellows 1T15M8
Flagg/Triangle AS-8939
Flagg/Triangle Bellows 6363
Goodyear 1R12-1093
Goodyear Bellows 566-24-3-170
Hendrickson 060271-002
Meritor FS9663

Skip to the end of the images gallery

Mounting Bracket use H-60911-000
