AB-9780
Description

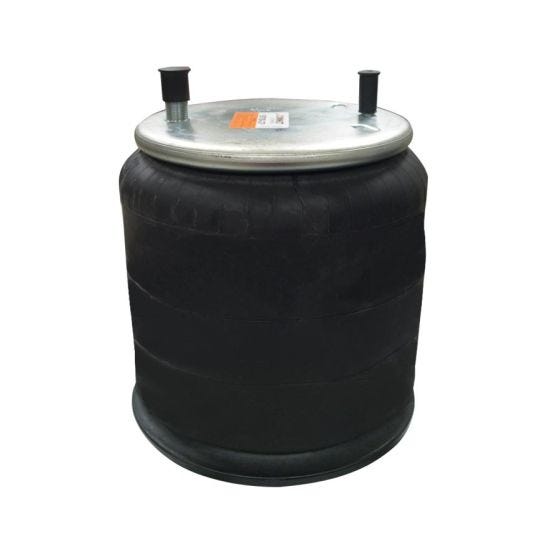

Air Spring-Rolling Lobe w/ Composite Piston
Alternate SKU
452-9780, 4529780, AB1DF23-9780, AB1DF239780, VM1-9780, VM19780, AB-1R12-303, AB1R12303, 1R12-303, 1R12303, 9780, AS-8382P, AS8382P, 358-9780, 3589780, 8382, E-FS9780, EFS9780, AB9780, W01-358-9780, 9 10S-16 P 382, 67473
Weight
11.90
- Attribute Value
- Product Name AB-9780
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10.62 in
- Piston Material Plastic
- Minimum Height 8.75 in
- Maximum Height 23 in
- Bellows Color Black
- Bellows Material Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DF23-9780
- Continental 67473
- Continental Bellows 9 10S-16
- Dayton 452-9780
- Firestone W01-358-9780
- Firestone Bellows 1T15ZR6, 1T15XBZR7.5
- Flagg/Triangle AS-8382
- Goodyear 1R12-303
- Goodyear Bellows 566-24-3-108, 566-24-3-274, 566-24-3-275
- Meritor E-FS9780
