AB-9371
Description

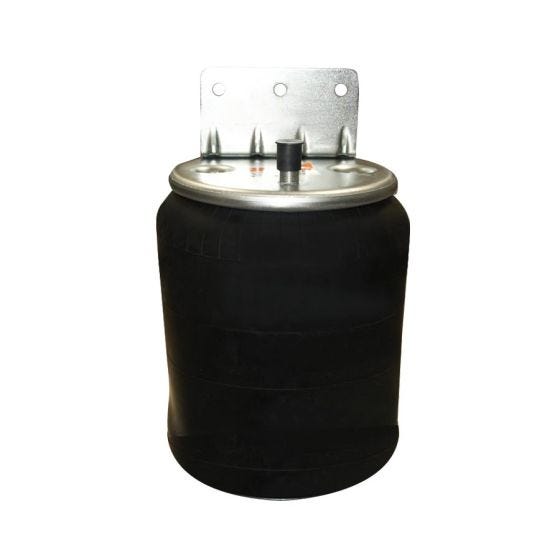

Air Spring-Rolling Lobe w/ Composite Piston
Alternate SKU
352-9371, 452-9371, 452-9371L, AB1DK23M-9371, AB1DK23M9371, VM1-9371, VM19371, AB-1R12-401, 1R12-401, 9371, AS-8521, ABDK123M-9371, 8521, 8440, E-FS9371, EFS9371, AB-1R12-401, 1670073C1, 1686386C1, 1670043C1, 566.CT69646, AB1DK23M-9371, 566.ER9371, 1R12-1062, 1R12-1074, 9 10-18.5 P 521, 69646, AS9371, V 1 DK 23 L-9371, AS-0139, 39371K, AB-9371, VM1-9371, 8521, 8440, E-FS9371, W01-358-9371, 9 10-18.5 P 521 (BK)
Weight
15.21
- Attribute Value
- Product Name AB-9371
- Top Plate Bolt Hole Quantity 3
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10 in
- Piston Material Plastic
- Minimum Height 6 in
- Maximum Height 22 in
- Bellows Color Black
- Bellows Material Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DK23M-9371
- Continental 69646
- Continental Bellows 9 10-18.5
- Dayton 352-9371, 452-9371
- Firestone W01-358-9371
- Firestone Bellows 1T15M8
- Flagg/Triangle AS-85221, AS-8440
- Goodyear 1R12-401
- Goodyear Bellows 566-24-3-038, 566-24-1-163, 566-24-1-008
- Meritor E-FS9371
