AB-8204

Description

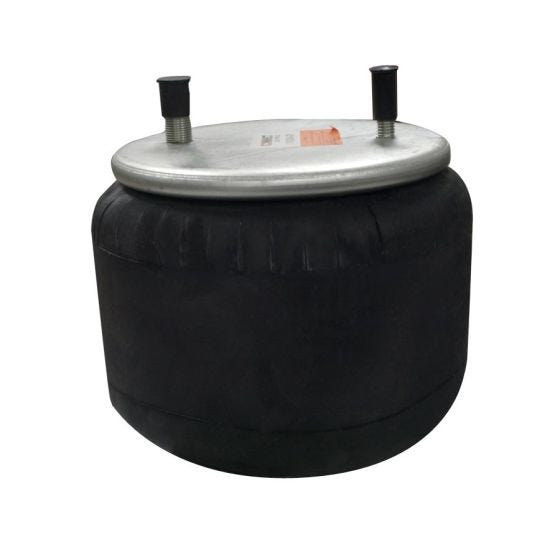

Air Spring - Rolling Lobe - Composite Piston

Alternate SKU

452-8204, 4528204, AB1DK23H-8204, AB1DK23H8204, VM1-8204, VM18204, AB-1R12-508, AB1R12508, 1R12-508, 1R12508, 8204, 9307, 9334, AS-8484, AS8484, 358-8204, 3588204, AB1DS23H-8204, AB1DS23H8204, 8484, E-FS8204, EFS8204, AB8204

Weight

10.36

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

Attribute Value
Product Name AB-8204
Maximum Height 13.8
Minimum Height 4.4
Top Plate Bolt Hole Quantity 2
Top Plate Diameter 9
Bottom Plate Diameter 9.5
Air Spring Type Rolling Lobe
Bottom Plate Bolt Hole Quantity 1

Cross Reference

Company Sku
Dayton 452-8204
Automann AB1DK23H-8204
Flagg 8484
Goodyear 1R12-508
Firestone 8204
Meritor E-FS8204
