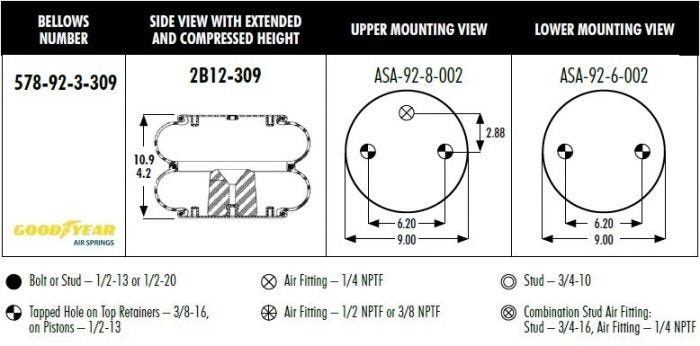

AB-2B12-309
Description
Genuine Goodyear Air Spring - Double Convoluted
Alternate SKU
2B12-309, 578-92-3-309, 354-7400, 454-7400, 454-7400L, W01-358-7400, 7400, 1003587400C, 566.ER7400, 566.CT64270, ABSP2B22R-7400, 693230, FD 330-22 313, 64270, 16-10769-000, 04-0080, 4-0080, S-1013, 90557016, 90557018, 1027519, AS74000, AS7400, AS-4313, V SP 2 B 22 R-7400, 2726, 554788C1, 670199, 3130488, AS-0003, M3506, AS214-7400, SC2020, PMABG-7400
Weight (lb)
15.00
- Attribute Value
- Make Freightliner, Navistar/International
- Top Plate Bolt Hole Quantity 3
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9 in
- Minimum Height 4.2 in
- Maximum Height 10.9 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 6.2 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 578-92-3-309
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Mounting Hardware Included No
- Air Spring Type Double Convoluted
- Company Sku
- Automann 566.ER7400, 566.CT64270, ABSP2B22R-7400
- Automann Bellows SP2B22R
- Continental 64270
- Continental Bellows FD 330-22
- Dayton 354-7400, 454-7400, 454-7400L
- Firestone W01-358-7400
- Firestone Bellows 22, 22C
- Flagg/Triangle AS-4313
- Flagg/Triangle Bellows 6316
- Freightliner 16-10769-000
- GMC 693230
- Goodyear 2B12-309
- Goodyear Bellows 578-92-3-309
- Hendrickson C-1013
- Navistar/International 554788C1
- Neway 905-57-016, TC-144-4
- Reyco 2726
- Ridewell 1003587400C, S-788-C
- Watson & Chalin AS-0003
