AB-1R14-174
Description

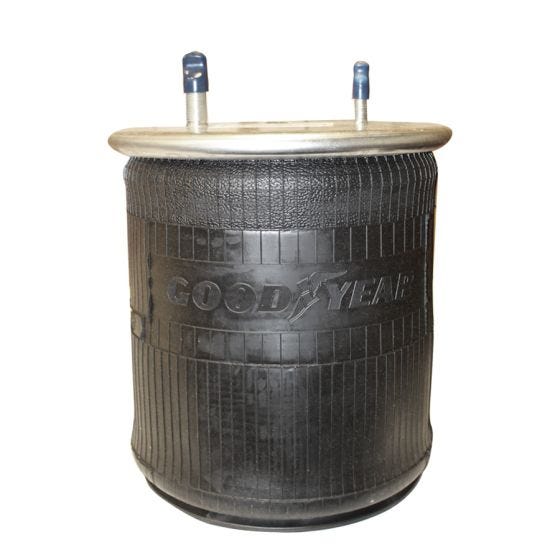

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
1R14-174, 452-5503, 352-5503, W01-358-5503, 5503, W01-675-9913, 9913, 905-57-200, 64422, 11 10.5-22 A 530, 1T19L-12, AS-8530, 566.CT64422, AB1DK28F-5503, AS55030, 566283020, AS5503, 200504, AS-0047-F, AS-0047, 2601749C1
Weight
16.50
- Attribute Value
- Product Name AB-1R14-174
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 11.3 in
- Bottom Plate Diameter 10.2 in
- Piston Material Steel
- Minimum Height 8.9 in
- Maximum Height 25.8 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment 45 Degree
- Bracket No
- Bumper Yes
- Bellows Number 566-28-3-017, 566-28-3-020, 566-28-3-022, 566-28-3-025
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Neway, Watson & Chalin, Meritor
- Company Sku
- Automann 566.CT64422, AB1DK28F-5503
- Automann Bellows 1DK28F
- Continental 64422
- Continental Bellows 11 10.5-22
- Dayton 452-5503, 352-5503
- Firestone W01-358-5503
- Firestone Bellows 1T19F-12, 1T19L-12
- Flagg/Triangle AS-8530
- Flagg/Triangle Bellows 6399, 6413
- Goodyear 1R14-174
- Goodyear Bellows 566-28-3-017, 566-28-3-020, 566-28-3-025
- Meritor 200504
