AB-1R14-172
Description

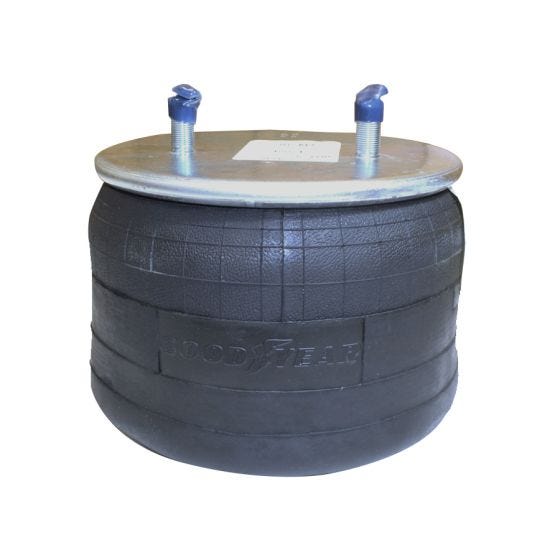

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK28M-8774, AB1DK28M8774, 352-8774, 3528774, 452-8774, 4528774, AS-8745, AS8745, S-25873, S25873, W01-358-8774, W013588774, 8774, 1R14-172, 1R14172, AB1R14172, 11 10.5F-17 P 745, 11105F17P745, 65593, 1R14-190, 1R14190, AS87740, C-25873, AS-0159, AS-0159-1G
Weight
20.00
- Attribute Value
- Product Name AB-1R14-172
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 11.3 in
- Bottom Plate Diameter 9.9 in
- Piston Material Plastic
- Minimum Height 5.9 in
- Maximum Height 22.5 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-28-3-042
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Watson & Chalin
- Company Sku
- Automann 566.CT65593, AB1DK28M-8774, 566.ER8774
- Automann Bellows 1DK28M
- Continental 65593
- Continental Bellows 11 10.5F-17
- Dayton 352-8774, 452-8774
- Firestone W01-358-8774
- Firestone Bellows 1T19LF-7
- Flagg/Triangle AS-8745
- Goodyear 1R14-172
- Goodyear Bellows 566-28-3-042
