AB-1R14-171
Description

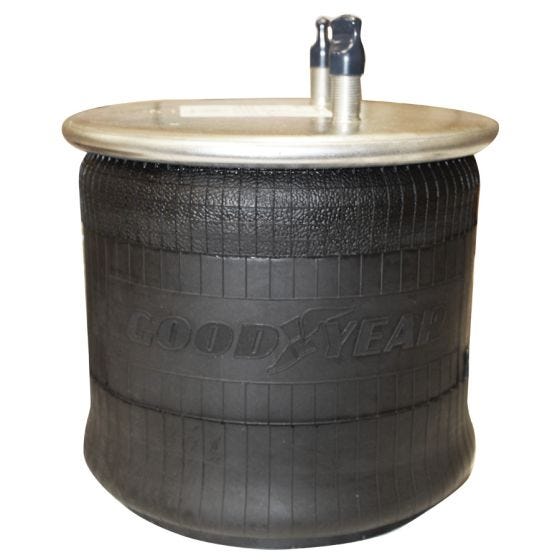

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK28E-8091, AB1DK28E8091, 352-8091, 3528091, 452-8091, 4528091, AS-8523, AS8523, S-20901, S20901, W01-358-8091, W013588091, 8091, 1R14-171, 1R14171, AB1R14171, 11 10.5A-16 P 523, 11105A16P523, 64421, S-21784, A2258P1576, C-20901, 1R14-242, AS8091, AS80910
Weight
19.00
- Attribute Value
- Product Name AB-1R14-171
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 11.3 in
- Bottom Plate Diameter 9.9 in
- Piston Material Plastic
- Minimum Height 5.9 in
- Maximum Height 18.4 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-28-3-065
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Navistar/International
- Company Sku
- Automann AB1DK28E-8091
- Automann Bellows 1DK28E
- Continental 64421
- Continental Bellows 11 10.5A-16
- Dayton 352-8091, 452-8091
- Firestone W01-358-8091
- Firestone Bellows 1T19LC-6, 1T19FC-6
- Flagg/Triangle AS-8523
- Flagg/Triangle Bellows 6398
- Goodyear 1R14-171
- Goodyear Bellows 566-28-3-065
- Infinity SR8091
