AB-1R14-170
Description

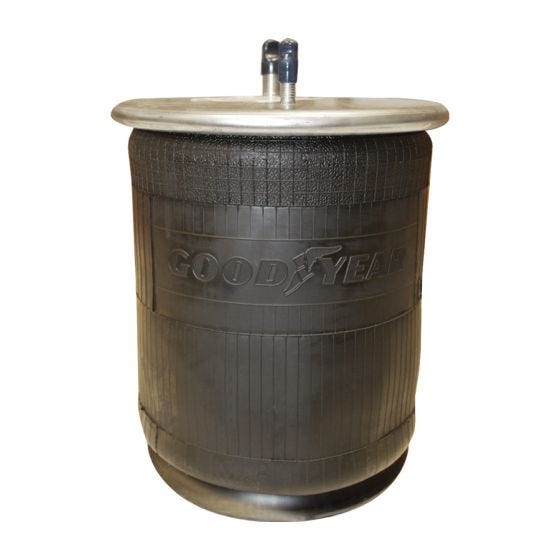

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
1R14-170, W01-358-5514, 452-5514, 352-5514, 566.CT64690, AB1DK28F-A752, AS-0047-1G, AS-0047-G, 11 10.5-22 A 752, 64690, 905-57-102, 64690, 11 10.5-22 A 752, AS55031
Weight
23.00
- Attribute Value
- Product Name AB-1R14-170
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 11.3 in
- Bottom Plate Diameter 10.2 in
- Piston Material Steel
- Minimum Height 8.9 in
- Maximum Height 25.8 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment 45 Degree
- Bracket No
- Bumper Yes
- Bellows Number 566-28-3-017, 566-28-3-020, 566-28-3-022, 566-28-3-025
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Watson & Chalin
- Company Sku
- Automann AB1DK28F-A752, 566.CT64690
- Automann Bellows 1DK28F
- Continental 64690
- Continental Bellows 11 10.5-22
- Dayton 452-5514, 352-5514
- Firestone W01-358-5514
- Firestone Bellows 1T19F12
- Flagg/Triangle AS-8752
- Goodyear 1R14-170
- Goodyear Bellows 566-28-3-017, 566-28-3-020, 566-28-3-022, 566-28-3-025
