Genuine OEM

AB-1R14-113

Description
Genuine Goodyear Air Springs - Rolling Lobe w/ Steel Piston
Alternate SKU
1R14-113, 566-28-3-030, 140-1R14113, 2700-FS5505, 880-W013585505, FIW013585505, CON64688, W01-358-5505, 5505, 1T19L12, AB1DK28F-5505, 566.CT64688, 1DK28F, 64688, 11 10.5-22 S 750, 11 10.5-22, 90557103, E-FS5505, G2295505300, 2295505300
Weight (lb)
30.50

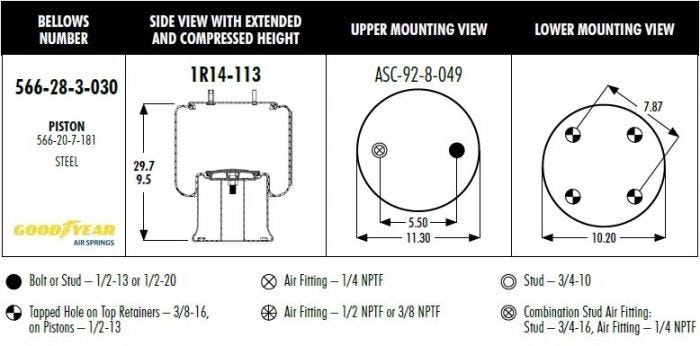

  • Attribute Value
  • Top Plate Bolt Hole Quantity 2
  • Bottom Plate Bolt Hole Quantity 4
  • Top Plate Diameter 11.3 in
  • Bottom Plate Diameter 10.2in
  • Piston Material Steel
  • Minimum Height 9.5 in
  • Maximum Height 29.7 in
  • Top Plate Center To Center Diameter 5.5 in
  • Bottom Plate Center To Center Diameter 7.87 in
  • Bottom Plate Alignment Parallel
  • Bracket No
  • Bumper No
  • Bellows Number 566-28-3-030
  • Bellows Color Black
  • Bellows Material Textile Reinforced Polymer Rubber
  • Mounting Hardware Included No
  • Air Spring Type Rolling Lobe
  • Company Sku
  • Automann AB1DK28F-5505, 566.CT64688
  • Continental 64688
  • Firestone W01-358-5505
  • Flagg/Triangle AS-8750
  • Goodyear 1R14-113
  • Goodyear Bellows 566-28-3-030,
  • Neway 905-57-103
