Genuine OEM

AB-1R14-042

Description
Genuine Goodyear Air Springs - Rolling Lobe w/ Aluminum Piston
Alternate SKU
1R14-042, 566-28-3-015, 566-28-3-024, 566-28-3-093, 352-8052, 566.ER8052, 566.CT64357, AB1DK28A-8052, 11 10.5C-16 A 378, 64357, W01-358-8052, 8052, 1T19Z5.7, 1T19J6, AS80520, AS-8378, 6367, 36514-012, 036514-012, 36514-12, B-12514-012, AS-0078, AS-0039, 1003588052C, 1681747C1, 90557293, 57008052, SC2121, WA01-8052C, 11105C16A378, RL80520, M3535
Weight (lb)
23.50

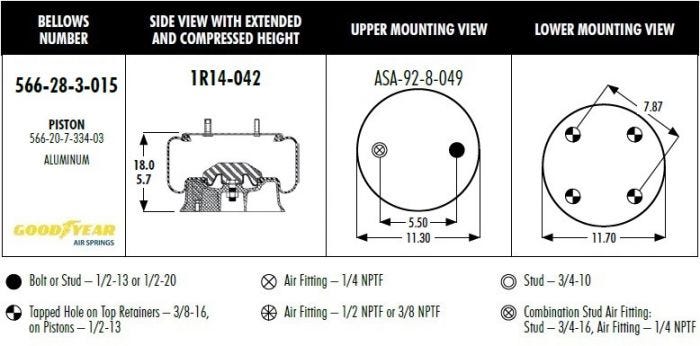

  • Attribute Value
  • Top Plate Bolt Hole Quantity 2
  • Bottom Plate Bolt Hole Quantity 4
  • Top Plate Diameter 11.3 in
  • Bottom Plate Diameter 11.7 in
  • Piston Material Aluminum
  • Minimum Height 5.7 in
  • Maximum Height 18 in
  • Top Plate Center To Center Diameter 5.5 in
  • Bottom Plate Center To Center Diameter 7.87 in
  • Bottom Plate Alignment Parallel
  • Bracket No
  • Bumper Yes
  • Bellows Number 566-28-3-015, 566-28-3-024, 566-28-3-093
  • Bellows Color Black
  • Bellows Material Textile Reinforced Polymer Rubber
  • Mounting Hardware Included No
  • Air Spring Type Rolling Lobe
  • Company Sku
  • Automann 566.ER8052, 566.CT64357, AB1DK28A-8052
  • Continental 64357
  • Dayton 352-8052
  • Firestone W01-358-8052
  • Firestone W01-358-8052
  • Flagg/Triangle AS-8378
  • Goodyear 1R14-042
  • Hendrickson 036514-012, B-12514-012
  • Navistar/International 1681747C1
  • Watson & Chalin AS-0078
