AB-1R14-039
Description

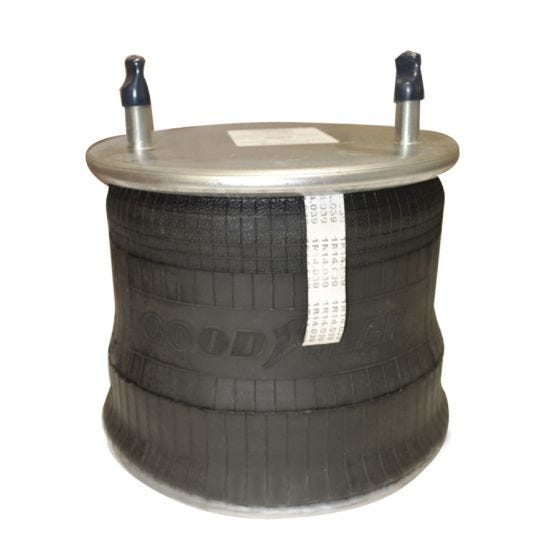

Genuine Goodyear Air Springs - Rolling Lobe w/ Aluminum Piston
Alternate SKU
AB1DK28A-8050, AB1DK28A8050, 352-8050, 3528050, 452-8050, 4528050, AS-8320, AS8320, 1685174C1, S-4771, B-4771, W01-358-8050, 8050, 1R14-039, 11 10.5C-16 A 320, 11105C16A320, 64254, B-12514-013, 23631-01, AS-0039, 1685174C1, 23631-01, 57008050, 3130498, 36514-13, S-36514-13, S-4771, 1R14-241, 1000008050G, SC2052, S6002
Weight
23.50
- Attribute Value
- Product Name AB-1R14-039
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 11.3 in
- Bottom Plate Diameter 11.7 in
- Piston Material Aluminum
- Minimum Height 5.7 in
- Maximum Height 18 in
- Top Plate Center To Center Diameter 7.75 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-28-3-065
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Navistar/International, Neway, Reyco, Volvo, Watson & Chalin
- Company Sku
- Automann AB1DK28A-8050
- Automann Bellows 1DK28A
- Continental 64254
- Continental Bellows 11 10.5C-16
- Dayton 352-8050, 452-8050
- Firestone W01-358-8050
- Firestone Bellows 1T19ZK-5.7, 1T19J-6
- Flagg/Triangle AS-8320
- Flagg/Triangle Bellows 6367
- Goodyear 1R14-039
- Goodyear Bellows 566-28-3-065
- Infinity SR8050
