AB-1R13-177
Description

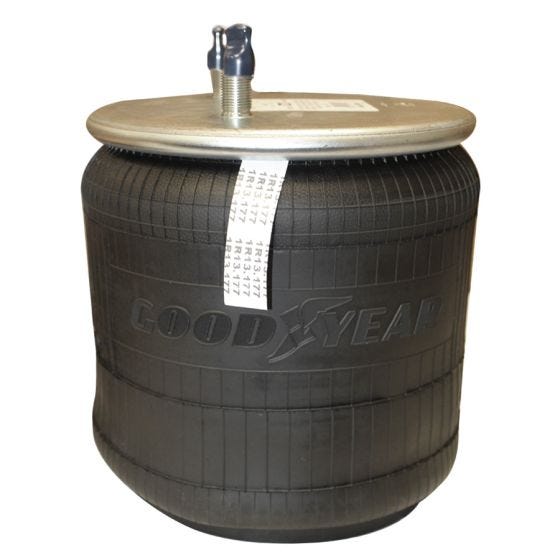

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK25E-8708, AB1DK25E8708, 352-8708, 3528708, 452-8708, 4528708, AS-8526, AS8526, W01-358-8708, W013588708, 8708, 1R13-177, 1R13177, AB1R13177, 10 10-16 P 526, 101016P526, 64638, HT-S21966, HTS21966, S-21966, S21966
Weight
20.00
- Attribute Value
- Product Name AB-1R13-177
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 10.3 in
- Bottom Plate Diameter 8.8 in
- Piston Material Plastic
- Minimum Height 9.1 in
- Maximum Height 19 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-26-3-078
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson
