AB-1R13-176
Description

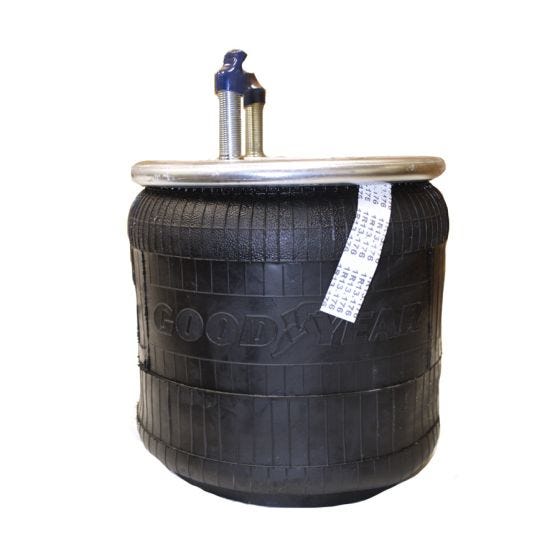

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R13-176, 1R13-140, W01-358-8713, 566.CT64636, 566.ER8713, AB1DK25E-8713, 64636, 452-8713, W01-358-8713, AS-8533, C-22948, S-22948, AS-8533, 10 10-16 P 533, 64636
Weight
20.00
- Attribute Value
- Product Name AB-1R13-176
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 10.3 in
- Bottom Plate Diameter 8.8 in
- Piston Material Plastic
- Minimum Height 9.1 in
- Maximum Height 19 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-26-3-078
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson
- Company Sku
- Automann 566.CT64636, AB1DK25E-8713, 566.ER8713
- Automann Bellows 1DK25E
- Continental 64636
- Continental Bellows 10 10-16
- Dayton 452-8713, 352-8713
- Firestone W01-358-8713
- Firestone Bellows 1T17CA6.5
- Flagg/Triangle AS-8533
- Flagg/Triangle Bellows 6382
- Goodyear 1R13-176
- Goodyear Bellows 566-26-3-078
