AB-1R13-159
Description

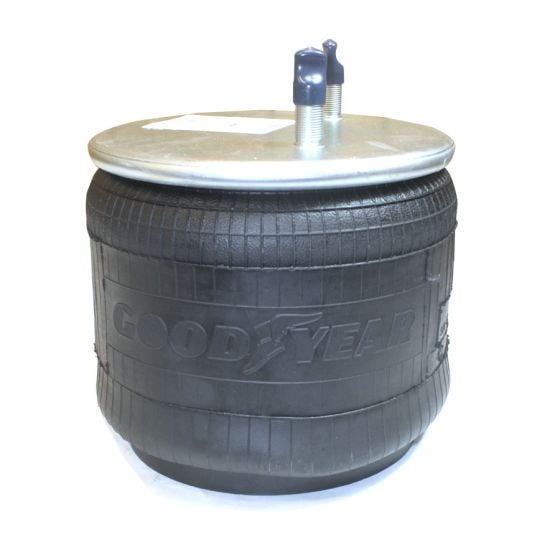

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
352-8709, 452-8709, 566.CT64645, AB1DK25A-8709, 566.ER8709, S-21800, S-20900, C-20900, C-21800, 1R13-159, 1R13159, 1DK25A8709, 8709, 8460, FS8709, W01-358-8709, 8709, W01-358-8751, 8751, 1R13-262, 10 10.5-15 P 460, 64645, AS-8460, AS-8453, AB-1R13-159, HT-S21800, AB-8709
Weight
17.50
- Attribute Value
- Product Name AB-1R13-159
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 10.3 in
- Bottom Plate Diameter 8.8 in
- Piston Material Plastic
- Minimum Height 6.1 in
- Maximum Height 18 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-26-3-073, 566-26-3-103, 566-26-3-050
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson
- Company Sku
- Automann 566.CT64645, AB1DK25A-8709, 566.ER8709
- Automann Bellows 1DK25A, 1DK25B
- Continental 64645
- Continental Bellows 10 10.5-15, 10 10-15
- Dayton 352-8709, 452-8709
- Firestone W01-358-8709, W01-358-8751
- Firestone Bellows 1T17CA-5, 1T17B-5
- Flagg/Triangle AS-8460, AS-8453
- Flagg/Triangle Bellows 6390
- Goodyear 1R13-159
- Goodyear Bellows 566-26-3-050, 566-26-3-073, 566-26-3-103
- Infinity SR8709
