AB-1R13-119
Description

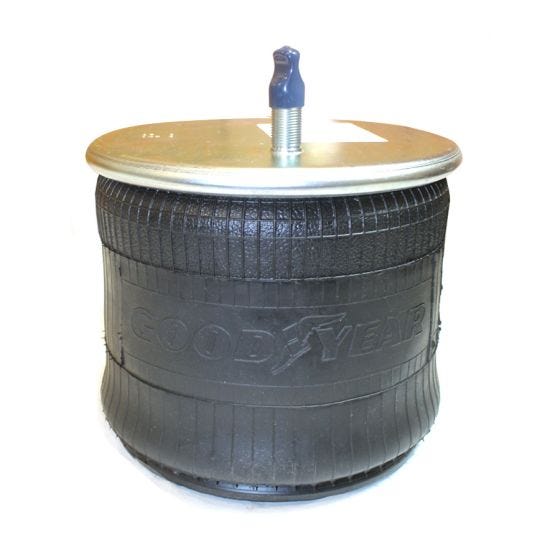

Genuine Goodyear Air Springs - Rolling Lobe w/ Steel Piston
Alternate SKU
AB1DK23I-9579, AB1DK23I9579, AB1DK23I-9270, AB1DK23I9270, 352-9270, 3529270, 452-9270, 4529270, AS-8433, AS8433, S-25559, S25559, 85101147, W01-358-9270, W013589270, 9270, 1R13-119, 1R13119, 1R13-239, 1R13239, AB1R13119, 9 10-13.5 S 433, 910135S433, 64287, 566.CT64287, 566.CT66447, AB1DK23I-9579
Weight
22.00
- Attribute Value
- Product Name AB-1R13-119
- Top Plate Bolt Hole Quantity 1
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 10.3 in
- Bottom Plate Diameter 9.5 in
- Piston Material Steel
- Minimum Height 5.6 in
- Maximum Height 16.4 in
- Top Plate Center To Center Diameter 3.05 in
- Bottom Plate Center To Center Diameter 5.66 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-26-3-098
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Volvo, Watson & Chalin
- Company Sku
- Automann AB1DK23I-9579, AB1DK23I-9270
- Automann Bellows 1DK23I
- Continental 64287
- Continental Bellows 9 10-13.5
- Dayton 352-9270, 452-9270
- Firestone W01-358-9270
- Firestone Bellows 1T15VP4, 1T15VM4, 1T15VM-4.0
- Flagg/Triangle AS-8433
- Flagg/Triangle Bellows 6385
- Goodyear 1R13-119
- Goodyear Bellows 566-26-3-098
- Infinity SR9270
