AB-1R13-039
Description

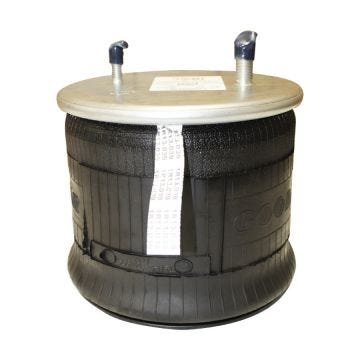

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R13-039, 452-9121, 352-9121, 90557019, 90557052, 90557078, 90557083, 90557110, 1003589121C, P50-733, 12882-02, AS-0013, AB1DK25E-S783, 566.CT64746, 566.CT64299, AB1DK23K-9228, 566.CT64272, 566.ER9121, AB1D28G-9121, AS-8317, AS-8783, 10 10-16.5 S 783, 64746, 566263051, W01-358-9121, W01-358-9166, W01-358-9228, S-13160, SC2040, 10 10-16.5 S 783, 9 10-16 A 354, 64746, 64299
Weight
19.50
- Attribute Value
- Product Name AB-1R13-039
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 10.3 in
- Bottom Plate Diameter 10.2 in
- Piston Material Plastic
- Minimum Height 7.7 in
- Maximum Height 19.5 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment 45 Degree
- Bracket No
- Bumper Yes
- Bellows Number 566-26-3-001, 566-26-3-003, 566-26-3-005, 566-26-3-006, 566-26-3-011, 566-26-3-012, 566-26-3-013, 566-26-3-028, 566-26-3-051, 566-26-3-051
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Grade Type Regular
- Air Spring Type Rolling Lobe
- Make Neway, Reyco, Watson & Chalin
- Company Sku
- Automann AB1DK25E-S783, 566.CT64746, 566.CT64299, AB1DK23K-9228, 566.CT64272, 566.ER9121, AB1D28G-9121
- Automann Bellows 1D28G, 1DK23K, 1DK25E
- Continental 64746
- Continental Bellows 10 10-16.5
- Dayton 452-9121, 352-9121
- Firestone W01-358-9121, W01-358-9228, W01-358-9166
- Firestone Bellows 1T19F-7, 1T19L-7, 1T15M-6, 1T17CA-6.5
- Flagg/Triangle AS-8317, AS-8783
- Flagg/Triangle Bellows 6363, 6365, 6382
- Goodyear 1R13-039
- Goodyear Bellows 566-26-3-001, 566-26-3-003, 566-26-3-005,566-26-3-006, 566-26-3-011, 566-26-3-012, 566-26-3-013, 566-26-3-028, 566-26-3-051
