AB-1R12-689
Description

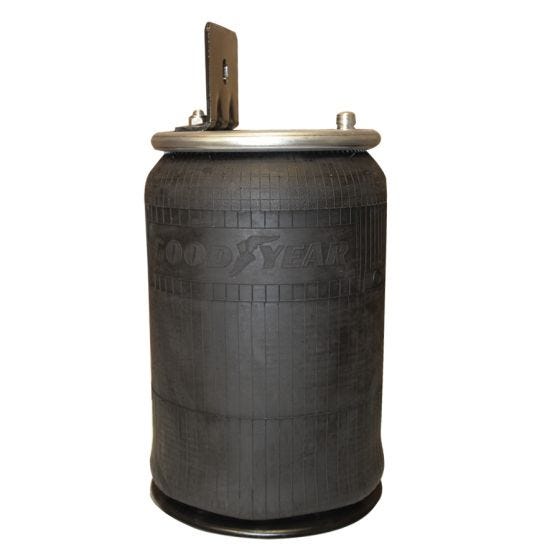

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
W01-358-1192, W013581192, 1192, AB-1R12-689, AB1R12689, 1R12-689, 1R12689, 3691773C1, AS-81137, AS81137, AS-81067, AS81067, 566.CT74662, 566CT74662, AB1DF23I-P1137, AB1DF23IP1137, AB1DF23I-P1067, AB1DF23IP1067, AB1DK23R-1731, AB1DK23R1731, 73746, 74662, 905-57-205, 452-1192, 352-1192, 1137888, 1137882, 9 10S-18 P 1067 (BK)
Weight
14.00
- Attribute Value
- Product Name AB-1R12-689
- Top Plate Bolt Hole Quantity 4
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10 in
- Piston Material Plastic
- Minimum Height 6.7 in
- Maximum Height 23 in
- Top Plate Center To Center Diameter 5.87 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket Yes
- Bumper No
- Bellows Number 566-24-3-066
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Navistar/International
- Company Sku
- Automann 566.CT74662, AB1DF23I-P1137, AB1DF23I-P1067
- Automann Bellows 1DF23I
- Continental 73746
- Continental Bellows 9 10S-18 P 1067
- Dayton 452-1192, 352-1192
- Firestone W01-358-1192
- Firestone Bellows 1T15XR-9
- Flagg/Triangle AS-81067
- Flagg/Triangle Bellows 910S18
- Goodyear 1R12-689
- Goodyear Bellows 566-24-3-066
