AB-1R12-669
Description

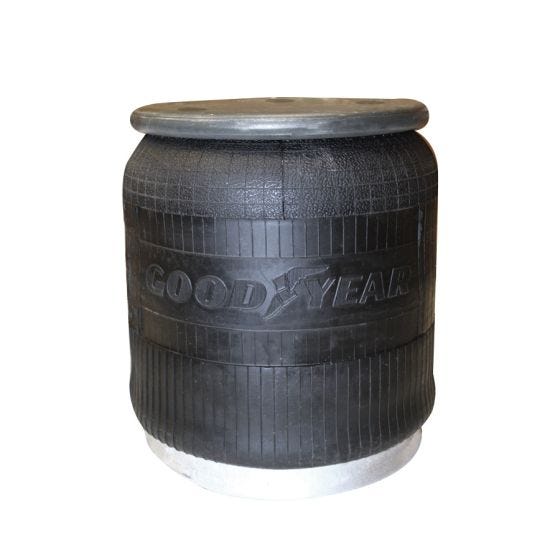

Genuine Goodyear Air Spring - Rolling Lobe w/ Aluminum Piston
Alternate SKU
566.CT64274, 566.CT7562623I-9069, 566.ER9069, AB1DK23I-9069, AB1DK23I-A312, 75626, 352-9069, 452-9069, 452-8813, 352-8813, W01-358-9069, AS-8312, 1R12-669, S-13031, 570-09-069, 03-01649, 03-02038, 03-02456, 03-04759, 03-06746, 03-07112, 03-10042, 23-10042, C81-6022, 554764C1, 85101145, AS-0077, 9 10-14 A 312, 352-9069L, 452-9069L, 452-8813L, 352-8813L, AB-1R12-069, 1R12-069
Weight (lb)
20.50
- Attribute Value
- Product Name AB-1R12-669
- Make Hendrickson, Kenworth, Navistar/International, Peterbilt, Volvo, Watson & Chalin
- Top Plate Bolt Hole Quantity 3
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.3 in
- Piston Material Aluminum
- Minimum Height 7.5 in
- Maximum Height 21.1 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT64274, 566.CT7562623I-9069, 566.ER9069, AB1DK23I-9069, AB1DK23I-A312
- Automann Bellows 1DK23I
- Continental 75626
- Continental Bellows 9 10-14
- Dayton 452-9069, 352-9069, 452-8813, 352-8813
- Firestone W01-358-9069
- Firestone Bellows 1T15M-4
- Flagg/Triangle AS-8312
- Flagg/Triangle Bellows 6362
- Goodyear 1R12-669
- Goodyear Bellows 566-24-3-038
