AB-1R12-636
Description

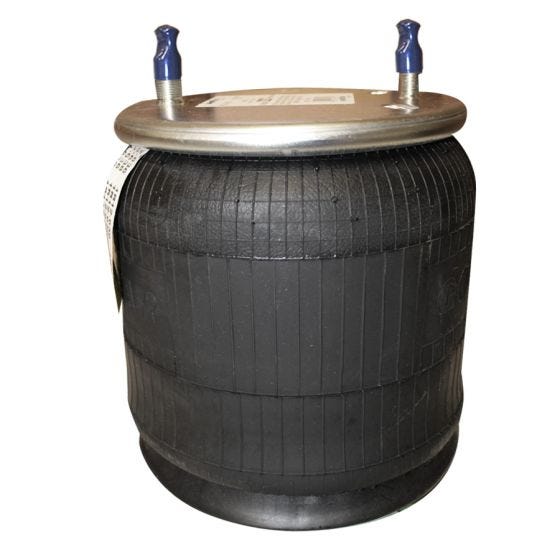

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
352-9634, AS-8575, 566.CT65361, AB1DK23I-9634, 566.ER9634, 1R12-636, W01-358-9634, 9634, 16-14263-000, 16-15443-000, 16-14263-001, 16-15443-001, 16-15444-000, 16-19470-000, 16-18333-000, 16-18333-001, AS9634, AS96340, 9 10-14 P 575, 65361
Weight
18.50
- Attribute Value
- Product Name AB-1R12-636
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 5.3 in
- Maximum Height 17.1 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-24-3-004, 566-24-3-021, 566-24-3-040, 566-24-3-043, 566-24-3-051, 566-24-3-052, 566-24-3-055, 566-24-3-076, 566-24-3-091
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT65361, AB1DK23I-9634, 566.ER9634
- Automann Bellows 1DK23I
- Continental 65361
- Continental Bellows 9 10-14
- Dayton 352-9634
- Firestone W01-358-9634
- Firestone Bellows 1T15MT3
- Flagg/Triangle AS-8575
- Flagg/Triangle Bellows 6388
- Goodyear 1R12-636
- Goodyear Bellows 566-24-3-004, 566-24-3-021, 566-24-3-040, 566-24-3-043, 566-24-3-051, 566-24-3-052, 566-24-3-055, 566-24-3-076, 566-24-3-091
