AB-1R12-580
Description

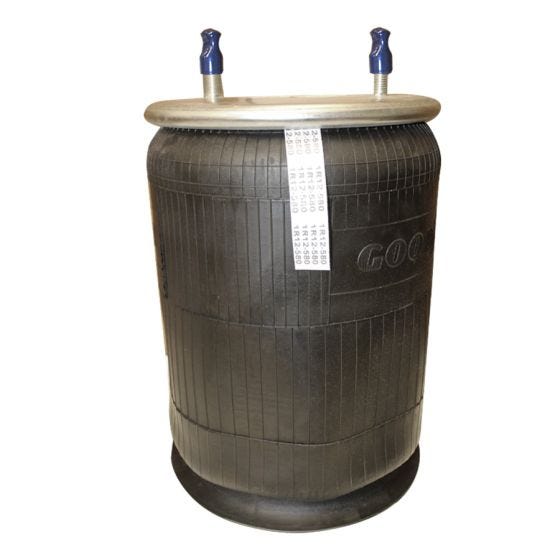

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-580, 1R12580, 1R12-440, 1R12440, AB-1R12-440, W013589370, W01-358-9370, W013589370, 9370, AB-9370, AB9370, AS-00571G, AS00571G, AS-0057F, AS-0057F, AS-0057, AS0057, 452-9370, 352-9370, 352-9370L, 4529370, 3529370, 3529370L, 64383, AS9370, AS9370, AS-8448, AS8448, AS93700, 1003589370C, AB1DK23N-9370, 566.CT64383, 566.ER9370, AB1DK23N9370, 566CT64383, 566ER9370, 9 10-21 P 448
Weight
22.00
- Attribute Value
- Product Name AB-1R12-580
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 10.3 in
- Bottom Plate Diameter 10.6 in
- Piston Material Plastic
- Minimum Height 9.5 in
- Maximum Height 28.2 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-117
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DK23N-9370, 566.CT64383, 566.ER9370
- Automann Bellows 1DK23N
- Continental 64383
- Continental Bellows 9 10-21
- Dayton 452-9370, 352-9370
- Firestone W01-358-9370
- Firestone Bellows 1T15M11
- Flagg/Triangle AS-8448
- Flagg/Triangle Bellows 6373
- Goodyear 1R12-580, 1R12-440
- Goodyear Bellows 566-24-3-117
