AB-1R12-538
Description

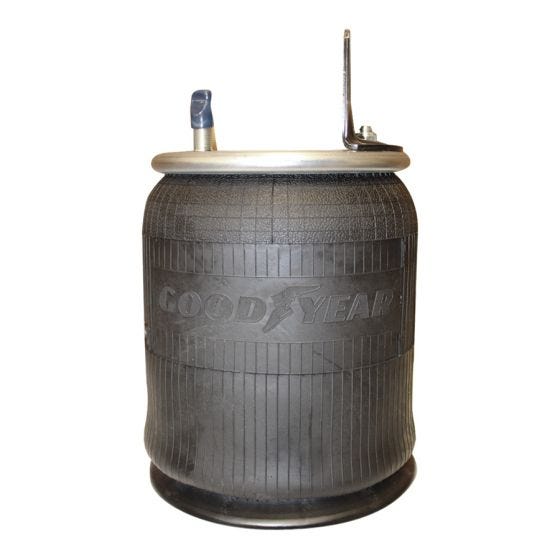

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DF23-P1058, AB1DF23P1058, 352-9648, 3529648, 452-9648, 4529648, AS-8456, AS8456, 2027911C1, 2027911C2, 2027911C3, W01-358-9648, W013589648, 9648, 1R12-538, 1R12538, AB1R12538, 9 10S-16 P 1068, 910S16P1068, 73770, 9 10S-16 P 1068 (BK)
Weight
14.00
- Attribute Value
- Product Name AB-1R12-538
- Top Plate Bolt Hole Quantity 4
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10 in
- Piston Material Plastic
- Minimum Height 6.7 in
- Maximum Height 20 in
- Top Plate Center To Center Diameter 5.7 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket Yes
- Bumper No
- Bellows Number 566-24-1-000, 566-24-1-008, 566-24-3-163
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Navistar/International
- Company Sku
- Automann AB1DF23-P1058
- Automann Bellows 1DK23M
- Continental 73770
- Continental Bellows 9 10-18.5
- Dayton 352-9648, 452-9648
- Firestone W01-358-9648
- Firestone Bellows 1T15M-8
- Flagg/Triangle AS-8456
- Flagg/Triangle Bellows 6363/91
- Goodyear 1R12-538
- Goodyear Bellows 566-24-1-000, 566-24-1-008, 566-24-3-163
- Infinity SR9648
