AB-1R12-508
Description

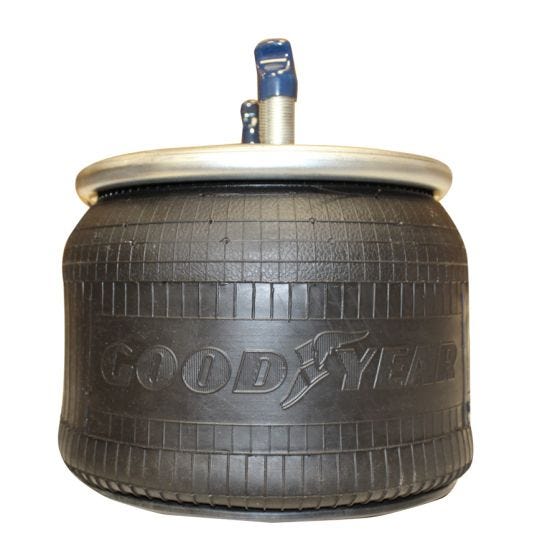

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK23F-9334, AB1DK23F9334, AB1DK23H-8204, AB1DK23H8204, AB1DK23F-9307, AB1DK23F9307, 352-8204, 3528204, 452-8204, 4528204, AS-8484, AS8484, W01-358-8204, W013588204, W01-358-9307, W013589307, 8204, 9307, 1R12-508, 1R12508, 1R12-522, 1R12-522, AB1R12508, 9 10-12 P 484, 91012P484, 64456, W01-358-9334, 1003589334C, 90557129, 90557173, 90557223
Weight (lb)
13.50
- Attribute Value
- Product Name AB-1R12-508
- Make Neway
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.3 in
- Piston Material Plastic
- Minimum Height 4.5 in
- Maximum Height 14.1 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-067, 566-24-3-002, 566-24-3-007, 566-24-3-030, 566-24-3-033, 566-24-3-035, 566-24-3-050, 566-24-3-056, 566-24-3-104, 566-24-3-113
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DK23F-9334, AB1DK23H-8204, AB1DK23F-9307
- Automann Bellows 1DK23F, 1DK23H
- Continental 64456
- Continental Bellows 9 10-12
- Dayton 352-8204, 452-8204
- Firestone W01-358-8204, W01-358-9307
- Firestone Bellows 1T15M-0, 1T15M-0.5, 1T15M-2
- Flagg/Triangle AS-8484
- Flagg/Triangle Bellows 6360, 6361, 6388
- Goodyear 1R12-508
- Goodyear Bellows 566-24-3-067, 566-24-3-002, 566-24-3-007, 566-24-3-030, 566-24-3-033, 566-24-3-035, 566-24-3-050, 566-24-3-056, 566-24-3-104, 566-24-3-113
