AB-1R12-507
Description

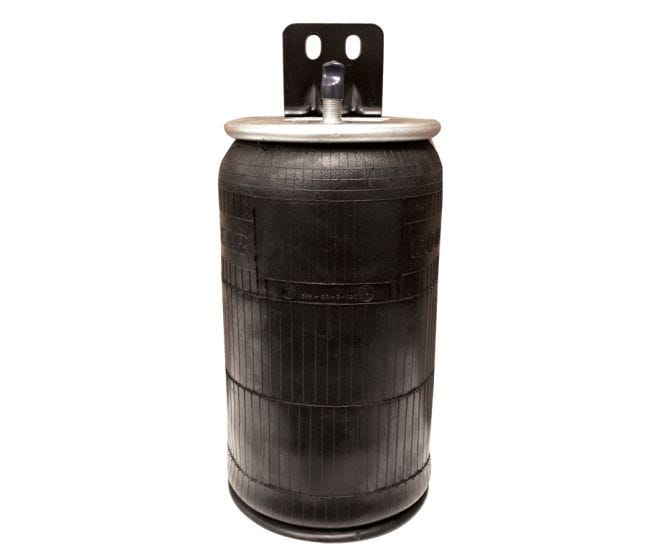

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-507, 9 10AS-21 P 1280, 77093, 3541734C1, AS-81280
Weight
15.50
- Attribute Value
- Product Name AB-1R12-507
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10 in
- Piston Material Plastic
- Minimum Height 6.7 in
- Maximum Height 18.3 in
- Top Plate Center To Center Diameter 5.87 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket Yes
- Bumper No
- Bellows Number 566-24-3-090
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DF23L-P1280, 566.CT77093
- Automann Bellows 1DF23L
- Continental 77093
- Continental Bellows 9 10AS-21
- Flagg/Triangle AS-81280
- Goodyear 1R12-507
- Goodyear Bellows 566-24-3-090
