AB-1R12-485
Description

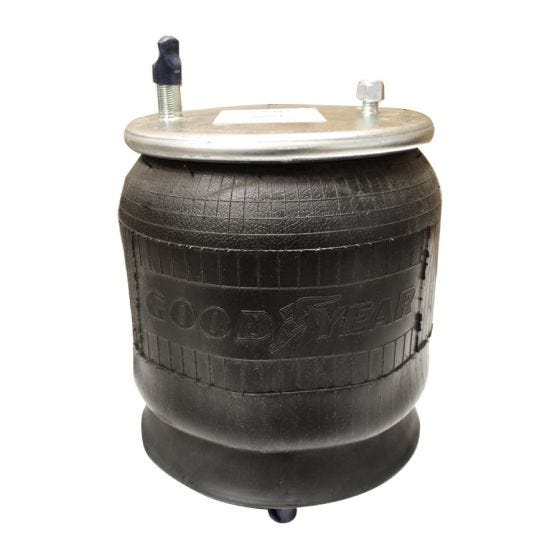

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
566.CT69662, AB1DK23P-9501, 9 10-17.5 P 572, 69662, 352-9501, 452-9501, W01-358-9501, AS-8502, AS-8572, 1R12-485, 905-57-212, 905-57-214, 9 10-17.5 P 572 (BK)
Weight
17.50
- Attribute Value
- Product Name AB-1R12-485
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 9.9 in
- Maximum Height 20.7 in
- Top Plate Center To Center Diameter 5.87 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment 90 Degree
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Neway
- Company Sku
- Automann 566.CT69662, AB1DK23P-9501
- Automann Bellows 1DK23P
- Continental 69662
- Continental Bellows 9 10-17.5
- Dayton 452-9501, 352-9501
- Firestone W01-358-9501
- Firestone Bellows 1T15V-8
- Flagg/Triangle AS-8502, AS-8572
- Flagg/Triangle Bellows 6369, 6391
- Goodyear 1R12-485
- Goodyear Bellows 566-24-3-038
