Genuine OEM

AB-1R12-481

Description
Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-481, 1R12-533, 566-24-3-097, 352-9923, 452-9923, 452-9923L, 566.CT64278, 566.ER9923, AB1DK23P-9923, 1DK23P, W01-358-9923, 1T15M7.5, 90557118, 9 10-17.5 P 429, 64278, 9 10-17.5, AS-8429, 6391, RL99230, WA01-9923C, AS9923, AS99230, M3548
Weight (lb)
17.50

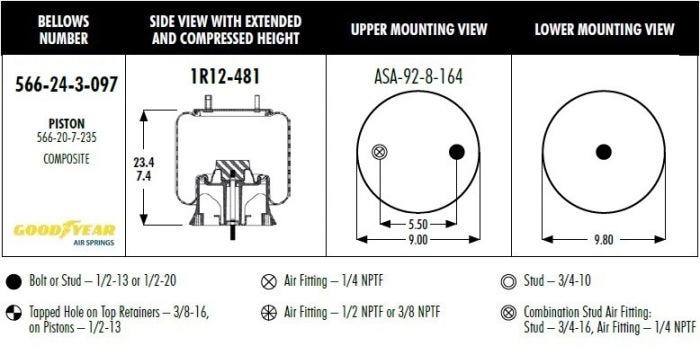

  • Attribute Value
  • Top Plate Bolt Hole Quantity 2
  • Bottom Plate Bolt Hole Quantity 1
  • Top Plate Diameter 9 in
  • Bottom Plate Diameter 9.8 in
  • Piston Material Plastic
  • Minimum Height 7.4 in
  • Maximum Height 23.4 in
  • Top Plate Center To Center Diameter 5.5 in
  • Bottom Plate Center To Center Diameter 9.8 in
  • Bottom Plate Alignment Parallel
  • Bracket No
  • Bumper Yes
  • Bellows Number 566-24-3-097
  • Bellows Color Black
  • Bellows Material Textile Reinforced Polymer Rubber
  • Mounting Hardware Included No
  • Air Spring Type Rolling Lobe
  • Company Sku
  • Automann 566.CT64278, 566.ER9923, AB1DK23P-9923
  • Automann Bellows 1DK23P
  • Continental 64278
  • Continental Bellows 9 10-17.5
  • Dayton 352-9923, 452-9923, 452-9923L
  • Firestone W01-358-9923
  • Firestone Bellows 1T15M7.5
  • Flagg/Triangle AS-8429
  • Flagg/Triangle Bellows 6391
  • Goodyear 1R12-481, 1R12-533
  • Goodyear Bellows 566-24-3-097
  • Neway 905-57-118
