AB-1R12-467
Description

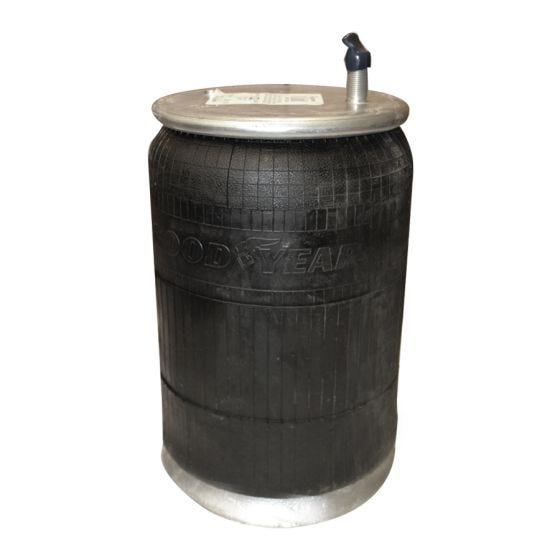

Genuine Goodyear Air Springs - Rolling Lobe w/ Aluminum Piston
Alternate SKU
1R12-467, 352-0783, 452-0783, 452-0783L, 566.CT65387, AB1DK23L-A801, AB1DK23L-A830, 566.CT65807, W01-358-0783, 0783, 783, 9 10-19 A 830, 9 10-19.5 A 801, 65807, 65387, 1000001, 1001R12607G, 1R12-607, AS-8801, AS-8830, AS2467G, ASA8010, C-0060, 9 10-19.5 A 801, 9 10-19 A 830, 65387, 65807
Weight
22.00
- Attribute Value
- Product Name AB-1R12-467
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10.13 in
- Piston Material Aluminum
- Minimum Height 7.6 in
- Maximum Height 25 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-066
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT65387, AB1DK23L-A801, AB1DK23L-A830, 566.CT6580
- Automann Bellows 1DK23L
- Continental 65387, 65807
- Continental Bellows 9 10-19.5, 9 10-19
- Dayton 352-0783, 452-0783
- Firestone W01-358-0783
- Firestone Bellows 1T15M9
- Flagg/Triangle AS-8830
- Flagg/Triangle Bellows 6364/87
- Goodyear 1R12-467
- Goodyear Bellows 566-24-3-066
