AB-1R12-436
Description

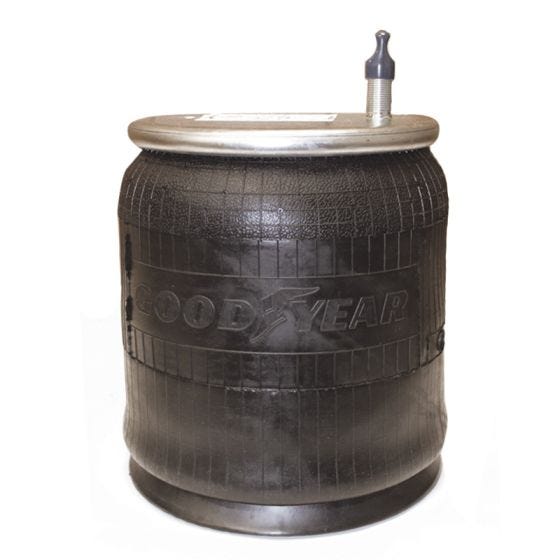

Genuine Goodyear Rolling Lobe Air Spring w/ Composite Piston
Alternate SKU
352-8924, 3528924, 452-8924, 4528924, AB1DK23K-8924, AB1DK23K8924, 566.CT64314, 566CT64314, AS-8497, AS8497, 1R12-436, 1R12436, W01-358-8924, W013588924, 64314, AS-8191, AS8191, 8924, 1003588924C, AB1R12436, 9 10-16 P 497
Weight
17.00
- Attribute Value
- Product Name AB-1R12-436
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 7.9 in
- Maximum Height 20.8 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-008, 566-24-3-010, 566-24-3-011, 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DK23K-8924, 566.CT64314
- Automann Bellows 1DK23K
- Continental 64314
- Continental Bellows 9 10-16
- Dayton 352-8924, 452-8924
- Firestone W01-358-8924
- Firestone Bellows 1T15M-6, 1T15M6
- Flagg/Triangle AS-8497
- Flagg/Triangle Bellows 6363
- Goodyear 1R12-436
- Goodyear Bellows 566-24-3-008, 566-24-3-010
