AB-1R12-435
Description

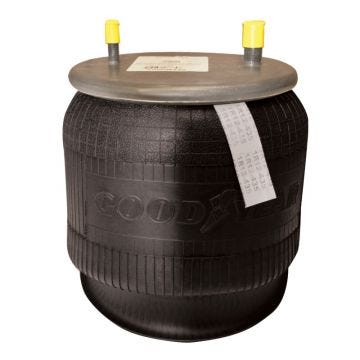

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
1R12-435, AB1DK23F-9307, AB1DK23F-9334, 566.CT64439, 566.CT64443, 566.ER9307, 566.CT67490, 90557129, W01-358-9307, W01-358-9334, 9307, 9334, 64439, 9 10-10 P 471, AS-8471, AS-8482, AS93070, AS93340, 1003589334C, 1T15M0.5, 1T15M0, 566-26-3-067, 6360,
Weight (lb)
15.00
- Attribute Value
- Make Neway
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9.0 in
- Bottom Plate Diameter 9.25 in
- Piston Material Steel
- Minimum Height 4.4 in
- Maximum Height 13.5 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-26-3-067
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann AB1DK23F-9307, AB1DK23F-9334, 566.CT64439, 566.ER9307, 566.CT67490,
- Automann Bellows 1DK23F
- Continental 64439, 64443
- Continental Bellows 9 10-10
- Firestone W01-358-9307, W01-358-9334
- Firestone Bellows 1T15M0.5, 1T15M0
- Flagg/Triangle AS-8471, AS-8482
- Flagg/Triangle Bellows 6360
- Goodyear 1R12-435
- Neway 90557129
