AB-1R12-404
Description

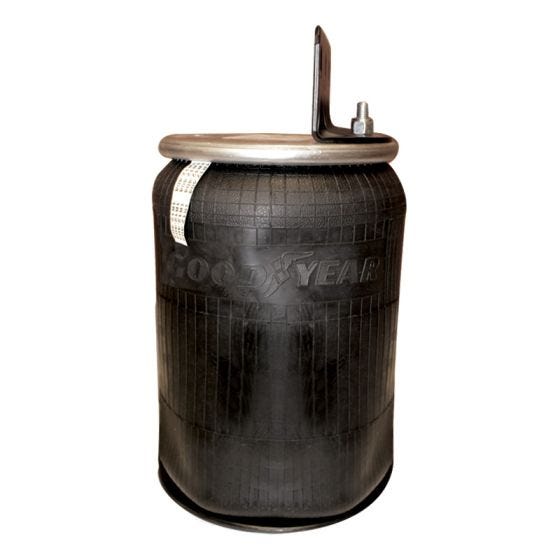

Genuine Goodyear Rolling Lobe Air Spring w/ Composite Piston
Alternate SKU
352-9375, 3529375, 452-9375, 4529375, AB1DK23M-9375, AB1DK23M9375, 555.CT68616, 555CT68616, 566.ER9375, 566ER9375, AS-8451, AS8451, 1R12-404, 1R12404, W01-358-9375, W013589375, 68616, 3645Q27, 364QS27, 57QL414M, 050899-002, 50899-002, 050899002, 50899002, 050899-001, 50899-001, 050899001, 50899001, 1R12-488, 1R12488, 9375, AB1R12404, SC2773, 9 10-18.5 P 451 (BK)
Weight
18.50
- Attribute Value
- Product Name AB-1R12-404
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10 in
- Piston Material Plastic
- Minimum Height 8.1 in
- Maximum Height 22.5 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket Yes
- Bumper Yes
- Bellows Number 566-24-1-012, 566-24-3-097, 566-24-3-111
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Mack
- Company Sku
- Automann AB1DK23M-9375, 555.CT68616, 566.ER9375
- Automann Bellows 1DK23M
- Continental 68616
- Continental Bellows 9 10-18.5
- Dayton 352-9375, 452-9375
- Firestone W01-358-9375
- Firestone Bellows 1T15M-8, 1T15M8
- Flagg/Triangle AS-8451
- Flagg/Triangle Bellows 6391, 6363
- Goodyear 1R12-404
- Goodyear Bellows 566-24-1-012, 566-24-3-097, 566-24-3-111
- Meritor FS9375
