AB-1R12-403
Description

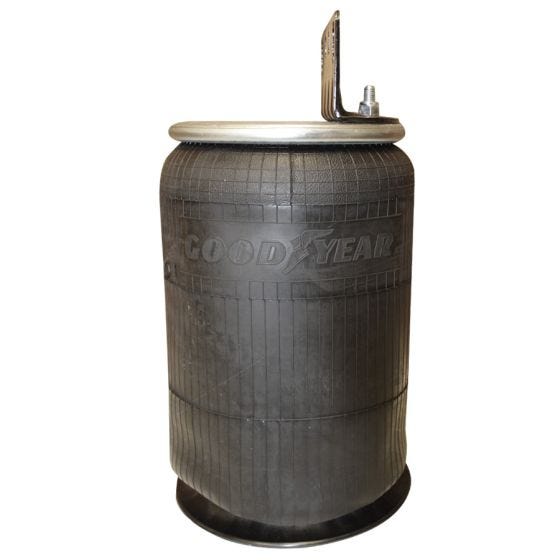

Genuine Goodyear Air Springs - Rolling Lobe w/ Steel Piston
Alternate SKU
AB1DK23M-9373, AB1DK23M9373, H-57122-002, 57122-002L, 57122002L, 452-9373, 4529373, AS-8451, AS8451, 057122-002, 57122-002, 057122002, 57122002, 3645Q27, 364QS27, W01-358-9373, W013589373, 9373, 1R12-403, 1R12403, AB1R12403, 9 10-18.5 P 519, 910185P519, 64265, 9 10-18.5 P 519 (BK)
Weight
18.00
- Attribute Value
- Product Name AB-1R12-403
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10 in
- Piston Material Steel
- Minimum Height 7.7 in
- Maximum Height 22.5 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket Yes
- Bumper Yes
- Bellows Number 566-24-1-012, 566-24-1-019, 566-24-3-097, 566-24-3-140
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Ford, Hendrickson, Navistar/International, Watson & Chalin
