AB-1R12-396

Description

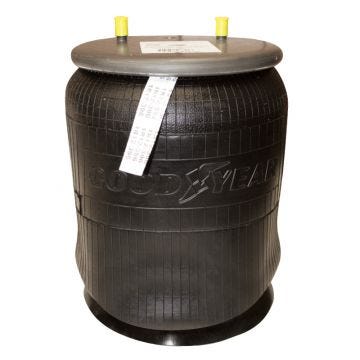

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston

Alternate SKU

1R12-396, 566-24-3-038, 63-0183, 452-9571L, 452-9571, 352-9571, W01-653-9571, 9571, 1T15MJ6, AB1DK23K-9571, 1DK23K, 12L-1-140

Weight (lb)

17.00

Attribute Value
Make Volvo
Top Plate Bolt Hole Quantity 3
Bottom Plate Bolt Hole Quantity 2
Top Plate Diameter 9.0 in
Bottom Plate Diameter 9.27 in
Piston Material Plastic
Minimum Height 7.3 in
Maximum Height 17.1 in
Top Plate Center To Center Diameter 4.5 in
Bottom Plate Center To Center Diameter 4.12 in
Bottom Plate Alignment 90 Degree
Bracket No
Bumper No
Bellows Number 566-24-3-038
Bellows Color Black
Bellows Material Textile Reinforced Polymer Rubber
Air Spring Type Rolling Lobe

Download Specification Sheet

Cross Reference

Company Sku
Dayton 452-9571L
Firestone W01-653-9571
Goodyear 1R12-396
