AB-1R12-367
Description

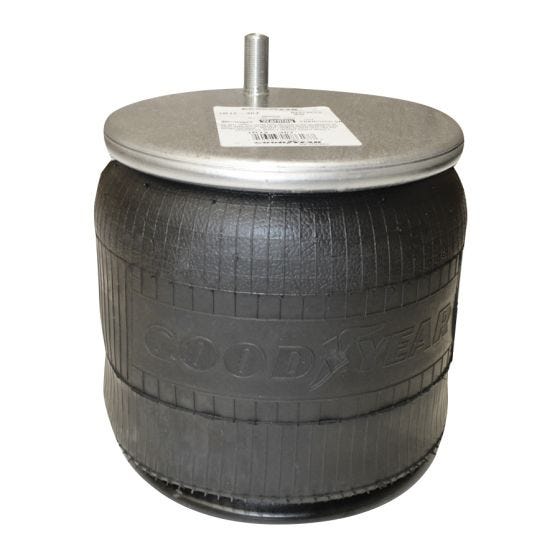

Genuine Goodyear Air Springs - Rolling Lobe w/ Steel Piston
Alternate SKU
352-9640, 452-9640, 452-9640L, 1R12-367, 566.CT64395, 566.ER9640, AB1DK23H-9640, 566.ER9640S, AS-8427, C-20223, S-20223, HT-S20223, W01-358-9640, 9640, AS96400, W01-358-0748, 0748, 9 10-12 A 427, 64395, 501559C1, 501559C2, 1660581C1, AS9640, SC2758, 2299640400, 3098612
Weight (lb)
20.50
- Attribute Value
- Product Name AB-1R12-367
- Make Hendrickson, Neway, Volvo, White
- Top Plate Bolt Hole Quantity 1
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 9.0 in
- Bottom Plate Diameter 9.5 in
- Piston Material Steel
- Minimum Height 5.5 in
- Maximum Height 16.6 in
- Top Plate Center To Center Diameter 3.5 in
- Bottom Plate Center To Center Diameter 5.66 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-004, 566-24-3-021, 566-24-3-040, 566-24-3-043, 566-24-3-049, 566-24-3-051, 566-24-3-052, 566-24-3-055, 566-24-3-076, 566-24-3-091, 566-24-3-314
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT64395, 566.ER9640, AB1DK23H-9640, 566.ER9640S
- Automann Bellows 1DK23H
- Continental 64395
- Continental Bellows 9 10-12
- Dayton 352-9640, 452-9640
- Firestone W01-358-9640
- Firestone Bellows 1T15MT3
- Flagg/Triangle AS-8427
- Flagg/Triangle Bellows 6388
- Goodyear 1R12-367
- Goodyear Bellows 566-24-3-004, 566-24-3-021, 566-24-3-040, 566-24-3-043, 566-24-3-049, 566-24-3-051, 566-24-3-052, 566-24-3-055, 566-24-3-076, 566-24-3-091
