AB-1R12-366
Description

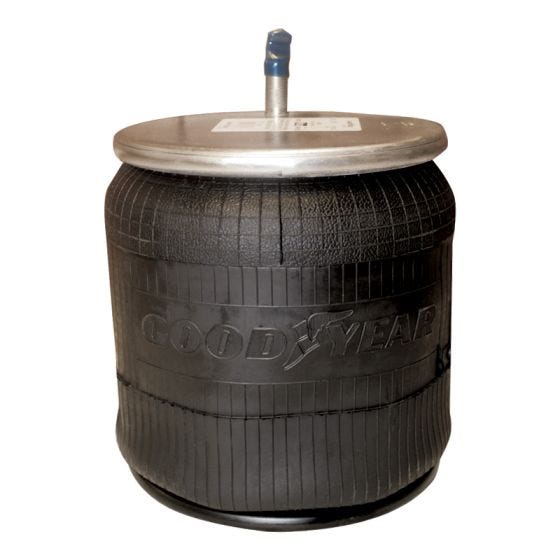

Genuine Goodyear Rolling Lobe Air Spring w/ Steel Piston
Alternate SKU
352-8944, 3528944, 452-8944, 4528944, AB1DK23P-8944, AB1DK23P8944, 566.ER8944, 566ER8944, 566.CT64401, 566CT64401, AB1DK23K-9299, AB1DK23K9299, 566.CT64634, 566CT64634, AS-8436, AS8436, 1R12-366, 1R12366, W01-358-8944, W013588944, W01-358-9015, W013589015, W01-358-9299, W013589299, 64634, C-20217, C20217, S-20716, S20716, 8944, 9015, 9299, RL89440, 1R12-271, 1R12271, S-20217, S20217, AS-8710, AS8710, AB1R12366, 9 10-16 P 710, 9 10-17.5 P 436, 64634, 64401
Weight
22.50
- Attribute Value
- Product Name AB-1R12-366
- Top Plate Bolt Hole Quantity 1
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.5 in
- Piston Material Steel
- Minimum Height 7.3 in
- Maximum Height 21.2 in
- Top Plate Center To Center Diameter 0 in
- Bottom Plate Center To Center Diameter 5.66 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-008, 566-24-3-010, 566-24-3-011, 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson
- Company Sku
- Automann AB1DK23P-8944, 566.ER8944, 566.CT64401, AB1DK23K-9299, 566.CT64634
- Automann Bellows 1DK23P
- Continental 64634, 64401
- Continental Bellows 9 10-16, 9 10-17.5
- Dayton 352-8944, 452-8944
- Firestone W01-358-8944, W01-358-9015, W01-358-9299
- Firestone Bellows 1T15M-7.5, 1T15MLW7, 1T15M75
- Flagg/Triangle AS-8436
- Flagg/Triangle Bellows 6364, 6414, 6391
- Goodyear 1R12-366
- Goodyear Bellows 566-24-3-097
