AB-1R12-365
Description

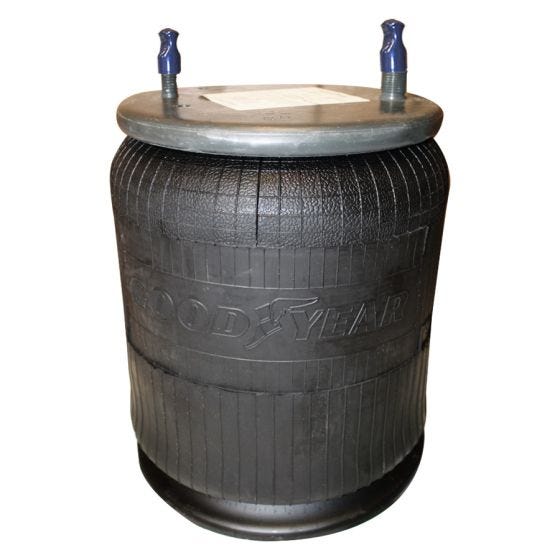

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston
Alternate SKU
1R12-365, 49048-000, 49048-002, 49674-001, 49674-002, W01-358-9466, 566.CT64276, AB1DK23K-9466, 566.ER9466, AS-8410, 57QL411M, 364SQ28, 35003-3805, 85101157, 49207, AS94660, 1R12-197, 1DK23K-9466, 9 10-16 P 410, E9HZ5580A, RL94660, 350034409, AS-0140, SC2175, M3526, PMABG-9123
Weight
19.50
- Attribute Value
- Product Name AB-1R12-365
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10.12 in
- Piston Material Steel
- Minimum Height 8.1 in
- Maximum Height 20.6 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 4.5 in
- Bottom Plate Alignment 90 Degree
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-038
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.CT64276, AB1DK23K-9466, 566.ER9466
- Automann Bellows 1DK23K
- Continental 64276
- Continental Bellows 9 10-16
- Dayton 452-9466, 352-9466
- Firestone W01-358-9466
- Firestone Bellows 1T15M6
- Flagg/Triangle AS-8410
- Flagg/Triangle Bellows 6363
- Goodyear 1R12-365
- Goodyear Bellows 566-24-3-038
