AB-1R12-335
Description

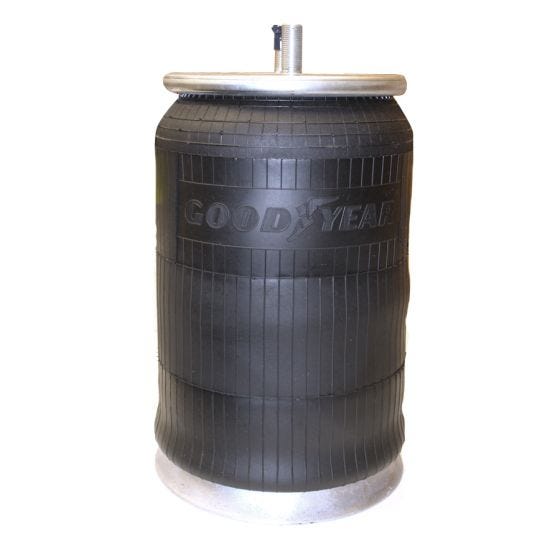

Genuine Goodyear Air Spring - Rolling Lobe w/ Aluminum Piston
Alternate SKU
1R12-335, 1R12-256, AB-1R12-256, W01-358-9321, 9321, W01-358-9367, 9367, 452-9321, 352-9321, 452-9367, 352-9367, 9 10-21 A 361, 64715, AS-0036, R-B-14249, S-14249, B-14249, HT-RB14249, 9 10-21 A 361, 9 10-21 P 361, 64291, 64715, 64291
Weight
24.00
- Attribute Value
- Product Name AB-1R12-335
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 9 in
- Bottom Plate Diameter 10.13 in
- Piston Material Aluminum
- Minimum Height 9.4 in
- Maximum Height 29.1 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-090, 566-24-3-070, 566-24-3-088, 566-24-3-095
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Hendrickson, Watson & Chalin
- Company Sku
- Automann AB1DK23N-9367A, AB1DK23N-9321
- Automann Bellows 1DK23N
- Continental 64715, 64291
- Continental Bellows 9 10-21
- Dayton 452-9321, 352-9321, 452-9367, 352-9367
- Firestone W01-358-9321, W01-358-9367
- Firestone Bellows 1T15M-11
- Flagg/Triangle AS-8361
- Flagg/Triangle Bellows 6373
- Goodyear 1R12-335, 1R12-256
- Goodyear Bellows 566-24-3-070, 566-24-3-088, 566-24-3-090, 566-24-3-095
AB-1R12-256 has composite base. AB-1R12-335 has aluminum base. Base may need to be rotated for some applications.
