AB-1R12-256
Description

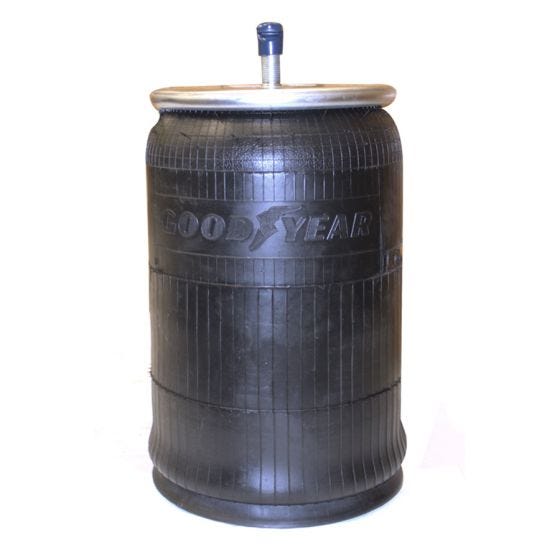

Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-256, 1R12-335, 1R12-1071, AB-1R12-335, 452-9367, 352-9367, 452-9321, 352-9321, W01-358-9367, W013589367, 9367, W01-358-9321, 9321, 566.CT64384, 566.CT64716, 566CT64384, 566CT64716, AB1R12256, 1R12-256, 1R12256, AS-8505, AS8505, W01-455-9321, S-14249, B-14249, B-4375, 64384, 9 10-21 P 505, 64384, 64716
Weight
18.50
- Attribute Value
- Product Name AB-1R12-256
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 4
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 9.5 in
- Maximum Height 29.1 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 7.87 in
- Bottom Plate Alignment 45 Degree
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-070, 566-24-3-088, 566-24-3-090, 566-24-3-095
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Navistar/International, Volvo
- Company Sku
- Automann 566.CT64384, 566.CT64716
- Automann Bellows 1DK23N
- Continental 64384
- Continental Bellows 9 10-21, 9 10-21 A 505
- Dayton 452-9367, 352-9367, 452-9321, 352-9321
- Firestone W01-358-9367, W01-358-9321
- Firestone Bellows 1T15M-11
- Flagg/Triangle AS-8505
- Flagg/Triangle Bellows 6373
- Goodyear 1R12-256
- Goodyear Bellows 566-24-3-070, 566-24-3-088, 566-24-3-090, 566-24-3-095
AB-1R12-256 has composite base. AB-1R12-335 has aluminum base. Base may need to be rotated for some applications.
