AB-1R12-1229
Description
Genuine Goodyear Air Spring - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-1229, 566-24-3-172, 1R12-1097, C81-1013, W01-687-5470, 5470, W01-358-8864, 8864, 601784, 9 10-19 P 1617, 66666, 9 10-19 P 898, 566.ER8864B, 566.CT66666, 566.ER8864, AB1DK23L-8864, 566.CT66666K, AS16173, AS8864, AS-8898, AS88640, 03-08716, 03-07887
Weight (lb)
12.80

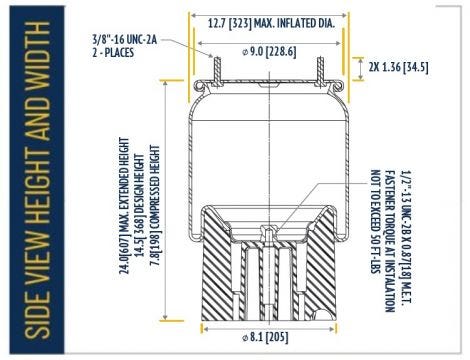

- Attribute Value
- Make Kenworth, Peterbilt
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 2
- Top Plate Diameter 9 in
- Bottom Plate Diameter 8 in
- Piston Material Plastic
- Minimum Height 7.8 in
- Maximum Height 24 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 3.9 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper No
- Bellows Number 566-24-3-172
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Mounting Hardware Included No
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.ER8864B, 566.CT66666, 566.ER8864, AB1DK23L-8864, 566.CT66666K
- Continental 601784, 66666
- Continental Bellows 9 10-19
- Dayton 352-8864
- Firestone W01-687-5470, W01-358-8864
- Firestone Bellows 1T15M-9
- Flagg/Triangle AS-8898
- Goodyear 1R12-1229
- Goodyear Bellows 566-24-3-172
- Kenworth C81-1013
- Peterbilt C81-1013
