AB-1R12-1204
Description

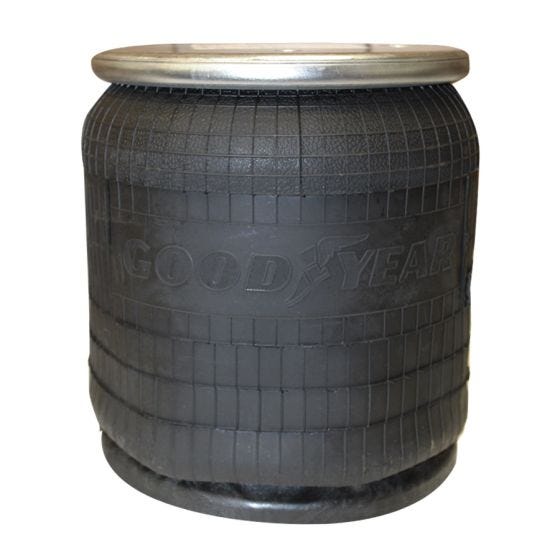

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
AB1DK23I-8813, AB1DK23I8813, 352-8813, 3528813, 452-8813, 4528813, W01-358-8813, W013588813, 8813, 1R12-1204, 1R121204, AB1R121204, AS-8577, AS8577, 9 10-14 P 577, 91014P577, 65990, C81-1003, C81-6000
Weight
14.80
- Attribute Value
- Product Name AB-1R12-1204
- Top Plate Bolt Hole Quantity 3
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.45 in
- Piston Material Plastic
- Minimum Height 6.5 in
- Maximum Height 18 in
- Top Plate Center To Center Diameter 6.2 in
- Bottom Plate Center To Center Diameter 0 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-289
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Air Spring Type Rolling Lobe
- Make Kenworth, Peterbilt
- Name
- Peterbilt : Air Leaf
