AB-1R12-1180
Description

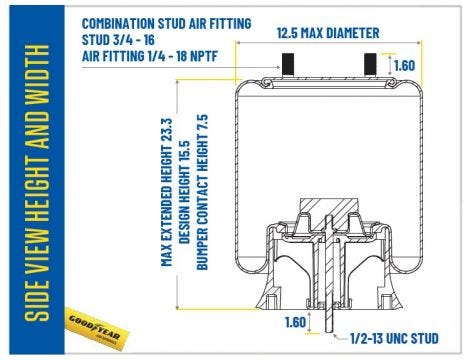

Genuine Goodyear Air Springs - Rolling Lobe w/ Composite Piston
Alternate SKU
1R12-1180, 566-24-3-294, W01-358-9646, 9646, 9 10BP-20 P 738, AS9646, 6427, AS-8564, AS96460, S-23611
Weight (lb)
14.93
- Attribute Value
- Make Hendrickson
- Top Plate Bolt Hole Quantity 2
- Bottom Plate Bolt Hole Quantity 1
- Top Plate Diameter 9 in
- Bottom Plate Diameter 9.8 in
- Piston Material Plastic
- Minimum Height 7.5 in
- Maximum Height 23.3 in
- Top Plate Center To Center Diameter 5.5 in
- Bottom Plate Alignment Parallel
- Bracket No
- Bumper Yes
- Bellows Number 566-24-3-294
- Bellows Color Black
- Bellows Material Textile Reinforced Polymer Rubber
- Mounting Hardware Included No
- Air Spring Type Rolling Lobe
- Company Sku
- Automann 566.ER9646, AB1DK23R-9646
- Continental 64694
- Continental Bellows 9 10BP-20
- Dayton 352-9646, 452-9646, 452-9646L, S-23611, AS-8564
- Firestone W01-358-9646
- Flagg/Triangle AS-8564
- Goodyear 1R12-1180
- Goodyear Bellows 566-24-3-294
- Hendrickson S-23611
